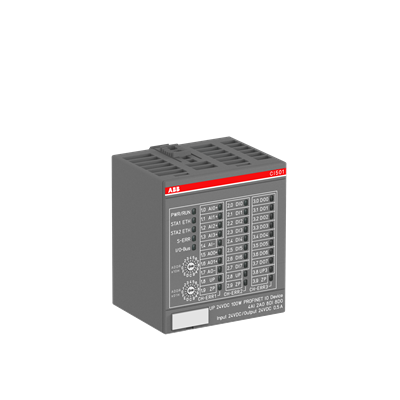

ABB CI501-PNIO: S500 Interface module

Ordering

CN8:

85389091

Invoice Description:

Interface module. PROFINET IO RT device. 4 AI: U, I, RTD. 2 AO: U, I. 8 DI 24VDC. 8 DO 24VDC 0.5A (CI501-PNIO)

Made To Order:

No

Minimum Order Quantity:

1 piece

Order Multiple:

1 piece

Selling Unit of Measure:

piece

Dimensions

Product Net Weight:

0.136 kg

Product Net Depth / Length:

62 mm

Product Net Height:

76 mm

Product Net Width:

67.5 mm

Gross Weight:

0.16 kg

Package Level 1 Depth / Length:

84 mm

Package Level 1 Height:

72 mm

Package Level 1 Width:

71 mm

Package Level 1 Units:

1 carton

Technical

Function:

PROFINET IO RT device. 4 AI: U, I, RTD. 2 AO: U, I. 8 DI 24VDC. 8 DO 24VDC 0.5A

Number of Hardware Interfaces:

Industrial Ethernet 2

Other 0

Parallel 0

RS-232 0

RS-422 0

RS-485 0

Serial TTY 0

USB 0

Wireless 0

Analog Inputs:

4

Analog Outputs:

2

Number of Digital Inputs:

8

Number of Digital Outputs:

8

Number of Digital Configurable I/Os:

0

Input Voltage Type:

DC

Input Voltage (Uin):

24 V DC

Input Current:

5 mA

Delay Time (τ):

0.1 … 32 ms

Output:

Transistor

Output Voltage Type:

DC

Output Current:

0.5 A

Output Voltage Maximum:

20.4 … 28.8 V

Degree of Protection:

IP20

Supply Voltage:

20.4 ... 28.8 V DC

Additional Information

Product Main Type:

CI501

Product Name:

Distributed Automation I/Os

Classifications

eClass:

27-24-26-07

ETIM 8:

EC001604 - Fieldbus, decentr. periphery - communication module

UNSPSC:

32151705

Environmental

SCIP:

a307b9ae-b352-4d4d-8ebf-99c63e467033 Germany (DE)

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)
