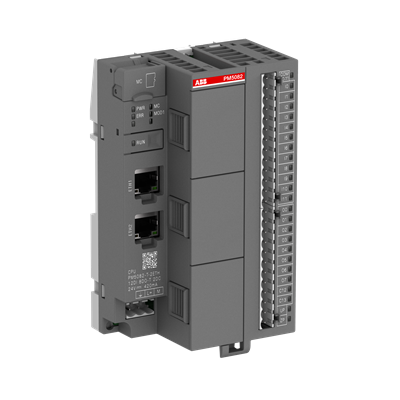

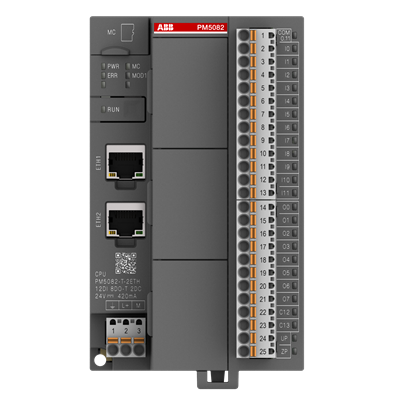

PM5082-T-2ETH: AC500-eCo Processor module

Ordering

CN8:

85371091

Invoice Description:

Processor module. Memory 8MB. 12 DI 24VDC. 8 DO 24VDC 0.5A. 2 DC 24VDC. 2 Ethernet interfaces. 3 option slots (PM5082-T-2ETH)

Made To Order:

No

Minimum Order Quantity:

1 piece

Order Multiple:

1 piece

Selling Unit of Measure:

piece

Dimensions

Product Net Weight:

0.262 kg

Product Net Depth / Length:

74 mm

Product Net Height:

135 mm

Product Net Width:

82 mm

Gross Weight:

0.302 kg

Package Level 1 Depth / Length:

100 mm

Package Level 1 Height:

95 mm

Package Level 1 Width:

175 mm

Package Level 1 Units:

1 carton

Technical

Memory Size:

9100 kB

Memory Type User Data:

RAM

Controller Processing Time:

0.00001 ms

Number of Digital Inputs:

12

Number of Digital Outputs:

8

Number of Digital Configurable I/Os:

2

Input Voltage Type:

DC

Rated Voltage (Ur):

24 V DC

Supply Voltage:

20.4 … 28.8 V DC

Additional Information

Product Main Type:

PM5082

Product Name:

Distributed Automation PLCs

Classifications

eClass:

27-24-22-07

ETIM 8:

EC000236 - PLC CPU-module

UNSPSC:

32151705

Environmental

SCIP:

91b82179-0ccd-45a3-a7c7-afe80004b6f5 Germany (DE)

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)
