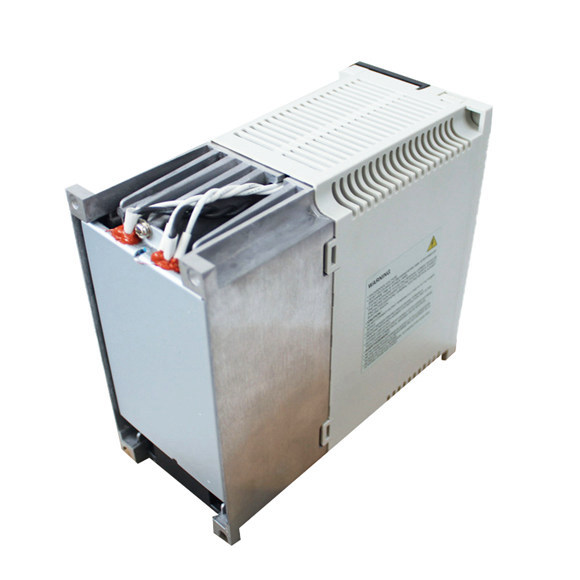

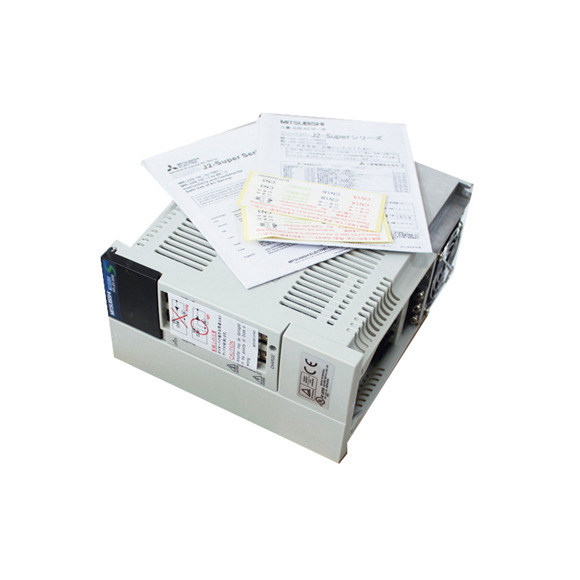

| Mitsubishi Servo amplifier model MR-J2S- | 10B | 20B | 40B | 60B | 70B(-UM) | 100B | 200B | 350B | 500B | 700B | 11KB | 15KB | 22KB | 30KB | 37KB | 10B1 | 20B1 | 40B1 |
| Mitsubishi Servo Drive MR-J2S | — | MR-HP30KA | — |
| 1-phase 200 to 230VAC 50/60Hz | 1-phase 100 to 120VAC 50/60Hz |
| Control circuit power supply |
| Voltage/frequency |
| Permissible voltage fluctuation | 1-phase 170 to 253VAC | 1-phase 85 to 127VAC |
| Permissible frequency fluctuation | ±5% maximum | ±5% maximum |
| Power consumption (W) | 50 | 50 |
| Main circuit power supply Voltage/frequency (Note 1) | 3-phase 200 to 230VAC 50/60Hz or 1-phase 230VAC 50/60Hz (Note 2) | 3-phase 200 to 230VAC 50/60Hz (Note 2) | The servo amplifier’s main circuit power is supplied from the converter unit. | 1-phase 100 to 120VAC 50/60Hz (Note 2) |
| Permissible voltage fluctuation | 3-phase 200 to 230VAC:170 to 253VAC 1-phase 230VAC: 207 to 253VAC | 3-phase 170 to 253VAC | 1-phase 85 to 127VAC |
| Permissible frequency fluctuation | ±5% maximum | ±5% maximum |
| Control system | Sine-wave PWM control/current control system |
| Dynamic brake | Built-in (Note 3) | External option | Built-in (Note 3) |
| Safety features | Overcurrent shutdown, regeneration overvoltage shutdown, overload shutdown (electronic thermal), servo motor overheat protection, encoder fault protection, regeneration fault protection, undervoltage/sudden power outage protection, overspeed protection, excess error protection |
| Maximum command input at the position control | Approximately 10Mpps |
| Structure | Self-cooling, open (IP00) | Fan cooling, open (IP00) | Self-cooling, open (IP00) |
| Ambient temperature | 0 to 55°C (32 to 131°F) (non freezing), storage: –20 to 65°C (–4 to 149°F) (non freezing) |
| Ambient humidity | 90% RH maximum (non condensing), storage: 90% RH maximum (non condensing) |
| Atmosphere | Indoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust |
| Elevation | 1000m (3280ft) or less above sea level |
| Vibration | 5.9m/s2 maximum |
| Mass (kg [lb]) | 0.7(1.5) | 0.7(1.5) | 1.1(2.4) | 1.1(2.4) | 1.7(3.7) | 1.7(3.7) | 2.0(4.4) | 2.0(4.4) | 4.9(10.8) | 7.2(15.9) | 15(33) | 16(35.3) | 20(44.1) | 47(103.5) | 47(103.5) | 0.7(1.5) | 0.7(1.5) | 1.1(2.4) |
| Voltage/frequency (Note 1) | — | 3-phase 200 to 230VAC50/60Hz | — |
| (Note 2) |
| Permissible voltage fluctuation | — | 3-phase 170 to 253VAC | — |
| Permissible frequency fluctuation | — | ±5% max. | — |
| — | 1-phase 200 to 230VAC50/60Hz | — |
| Control circuit power supply |
| Voltage/frequency |
| Permissible voltage fluctuation | — | 1-phase 170 to 253VAC | — |
| Permissible frequency fluctuation | — | ±5% max. | — |
| Power consumption (W) | — | 50 | — |
| Mass (kg [lb]) | — |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
