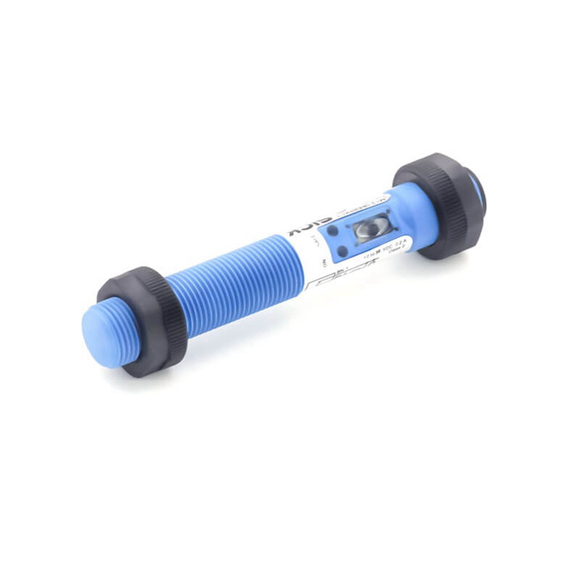

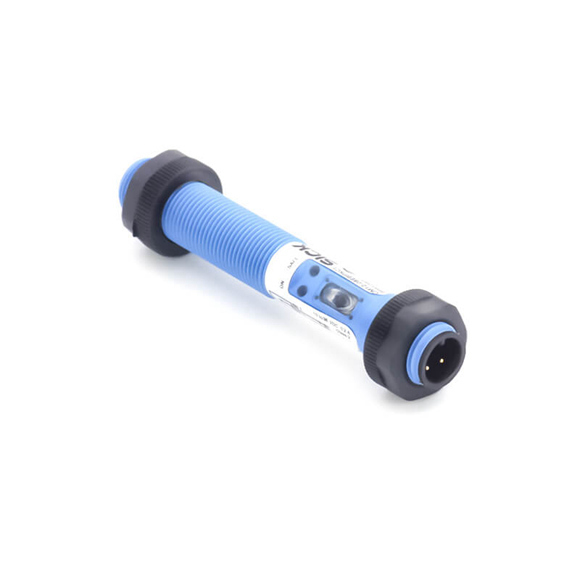

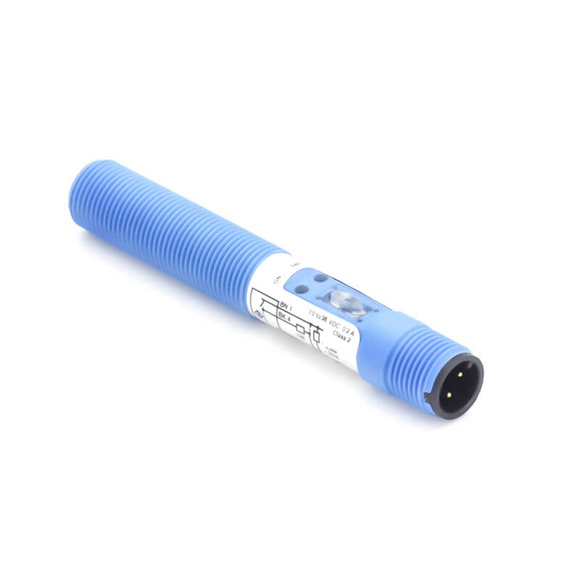

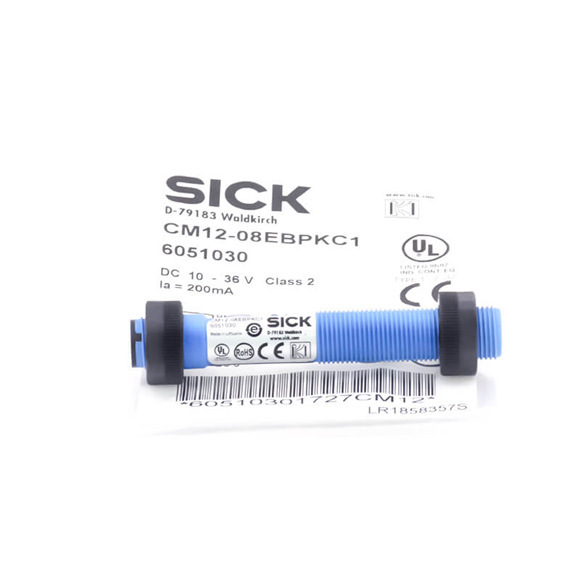

| Housing | Cylindrical thread design |
| Thread size | M12 x 1 |
| Diameter | Ø 12 mm |
| Sensing range Sn | 0 mm … 8 mm |
| Safe sensing range Sa | 5.76 mm |
| Installation type | Non-flush / flush 1) |
| Switching frequency | 15 Hz |
| Connection type | Male connector M12, 4-pin |
| Switching output | PNP / NPN |
| Output function | Programmable |
| Output characteristic | Wire configurable 2) |
| Electrical wiring | DC 4-wire |
| Adjustment | Single teach-in button (Sensitivity) |
| Cable (Sensitivity) |
| Enclosure rating | IP68 3) 4) |
| Supply voltage | 10 V DC … 36 V DC |
| Ripple | ≤ 10 % 1) |
| Voltage drop | ≤ 2.5 V DC 2) |
| Current consumption | 12 mA 3) |
| Time delay before availability | ≤ 120 ms |
| Hysteresis | 3 % … 20 % |
| Reproducibility | ≤ 5 % 4) 5) |
| EMC | According to EN 60947-5-2 6) |
| Continuous current Ia | ≤ 200 mA |
| Short-circuit protection | ✔ |
| Reverse polarity protection | ✔ |
| Power-up pulse protection | ✔ |
| Shock and vibration resistance | 30 g, 11 ms / 10 … 55 Hz, 1 mm |
| Ambient operating temperature | –20 °C … +85 °C |
| Ambient storage temperature | –40 °C … +85 °C |
| Housing material | Plastic, plastic |
| Housing length | 84.7 mm |
| Thread length | 46.5 mm |
| Tightening torque, max. | ≤ 1 Nm |
| Items supplied | Mounting nut, PA12 plastic (2x) |
| UL File No. | NRKH.E191603 |
