| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Sensing distance | 12.5 mm |
| Sensing distance tolerance | ± 3 mm |
| Housing design (light emission) | Rectangular |
| Light source | LED, RGB 1) |
| Wave length | 470 nm, 525 nm, 625 nm |
| Light emission | Long side of housing |
| Light spot size | 1.5 mm x 6.5 mm |
| Light spot direction | Vertical 2) |
| Receiving filters | None |
| Adjustment | Teach-in button |
| Teach-in mode | 2-point teach-in static/dynamic + proximity to mark |
| ET: Teach-in dynamic |
| Supply voltage | 12 V DC … 24 V DC 1) |
| Ripple | ≤ 5 Vpp 2) |
| Power consumption | < 50 mA 3) |
| Switching frequency | 15 kHz 4) |
| Response time | 32 µs 5) |
| Jitter | 15 µs |
| Switching output | PNP |
| Switching output (voltage) | PNP: HIGH = VS– ≤ 2 V / LOW approx. 0 V |
| Switching output | Light/dark switching |
| Output current Imax. | 50 mA 6) |
| Input, dynamic teach-in (ET) | PNP: Teach: U = 10,8 V … < UV |
| PNP: Run: U < 2 V or open |
| Retention time (ET) | 28 ms, non-volatile memory |
| Time delay | None |

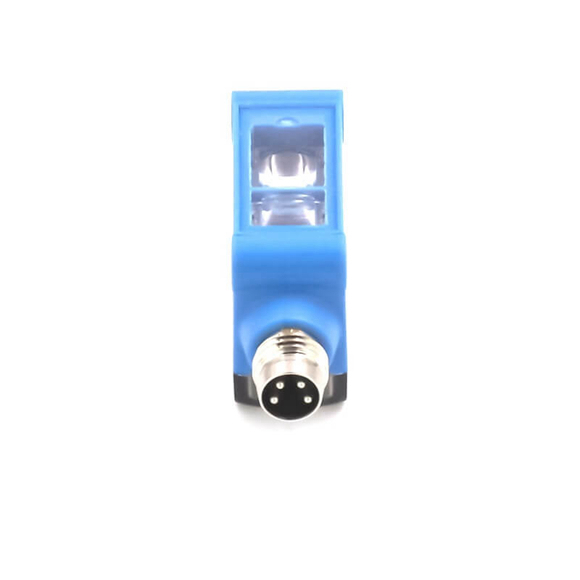

| Connection type | Male connector M8, 4-pin |
| Protection class | III |
| Circuit protection | UV connections, reverse polarity protected |
| Output Q short-circuit protected |
| Interference pulse suppression |
| Enclosure rating | IP67 |
| Weight | 20 g |
| Housing material | Plastic, ABS |
| Optics material | Plastic, PMMA |
