7 inch Panels with TFT color widescreen display

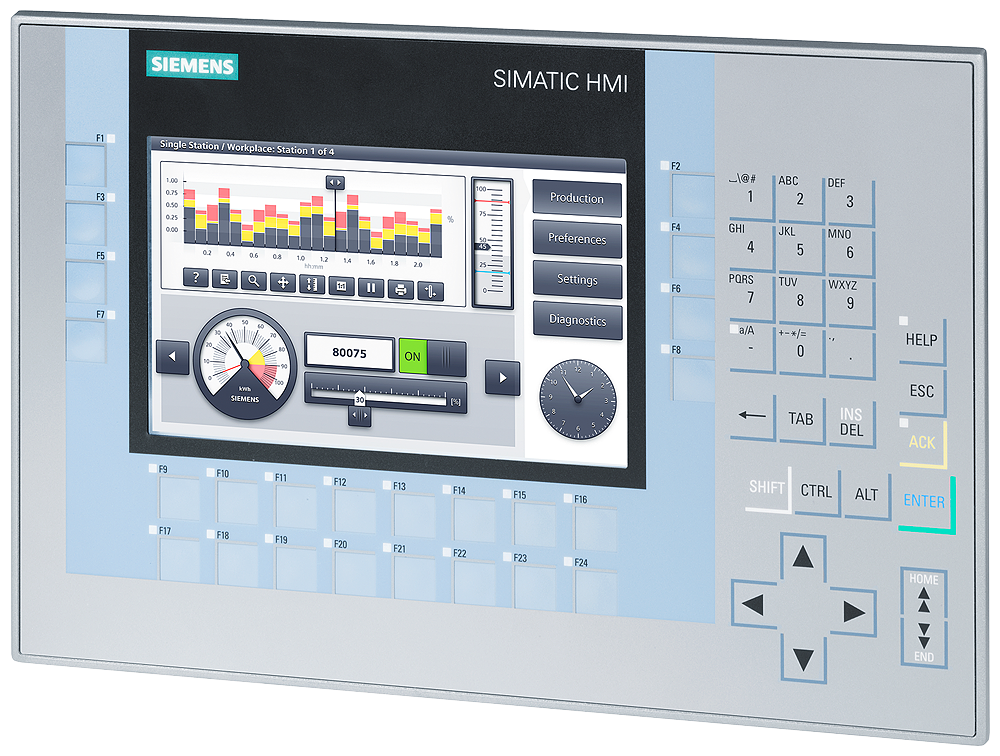

The KP700 offers high-end performance for HMI applications that cannot do without mechanical keys.
As far as the dimensions are concerned, the KP700 Comfort can replace an OP 277 using the same installation cutout, yet offering more functionality and performance.
The TP700 Comfort is the mounting compatible successor of the current 6 inch touch devices TP 177B mono, TP 177B color, TP 277 and MP 177.
TP700 and KP700 offer a higher performance, 40% more display space and a more than twice as high screen resolution.
Technical Data | TP700 Comfort | KP700 Comfort |
|---|---|---|
Hardware | ||
Display | 7.0 inch TFT widescreen display, 16 Mio colors | |
Resolution | 800 x 480 px | |
Control elements | Touch screen | Membrane Keypad (28 keys), |
User memory | 12 MB | |
Interfaces | 2 x RJ 45 Ethernet for PROFINET (with integrated switch) | |
Degree of protection | IP 65, NEMA 4x (front if mounted) / IP 20 rear | |
Installation cutout | 197 x 141 mm (W x H) | 280 x 176 mm (W x H) |
Front panel | 214 x 158 mm (W x H) | 308 x 204 mm (W x H) |
Device depth | 63 mm | 69 mm |
Software functions | ||
Configuration software | WinCC Comfort (TIA Portal) or higher | |
Messages | 4000 | |
Message classes | 32 | |
Process pictures | 500 | |
Variables | 2048 | |
Vector graphics | x | |
Bar graphics | x | |
Curve diagrams | f (t), f (x) | |
Recipes | 300 | |
Archiving | 50 | |
Visual Basic Scripts | 100 | |
Article No.: | 6AV2124-0GC01-0AX0 | 6AV2124-1GC01-0AX0 |
