| Dimensions (W x H x D) | 30.4 mm x 53 mm x 80 mm |
| Sensing distance | 10 mm 1) |
| Housing design (light emission) | Rectangular |
| Light source | LED, green 2) |
| Wave length | 520 nm |
| Light emission | Long and short side of housing, exchangeable |
| Light spot size | 1.2 mm x 4.2 mm |
| Light spot direction | Vertical 3) |

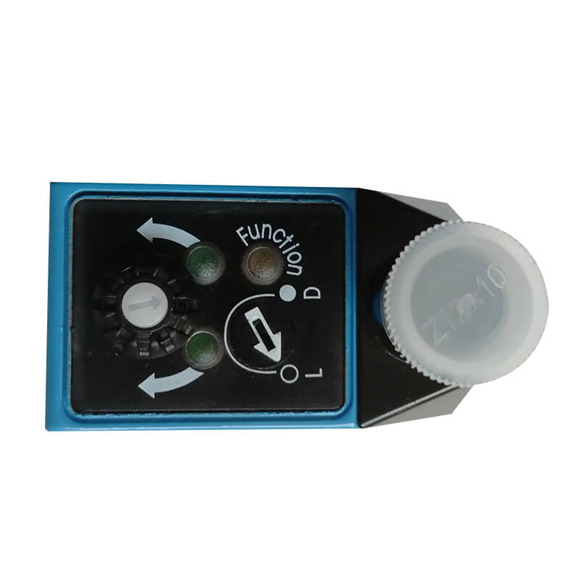

| Adjustment | Potentiometer |
| Output function | Light/dark switching |
| Supply voltage | 10 V DC … 30 V DC 1) |
| Ripple | ≤ 5 Vpp 2) |
| Power consumption | < 80 mA 3) |
| Switching frequency | 10 kHz 4) |
| Response time | 50 µs 5) |
| Switching output | PNP |
| Switching output (voltage) | PNP: HIGH = VS– ≤ 2 V / LOW approx. 0 V |
| Switching output | Light/dark switching |
| Output current Imax. | 100 mA 6) |
| Connection type | Male connector M12, 4-pin |
| Protection class | II 7) |
| Circuit protection | UV connections, reverse polarity protected |
| Output Q short-circuit protected |
| Interference pulse suppression |
| Enclosure rating | IP67 |
| Weight | 400 g |
| Housing material | Metal, Zinc diecast |
