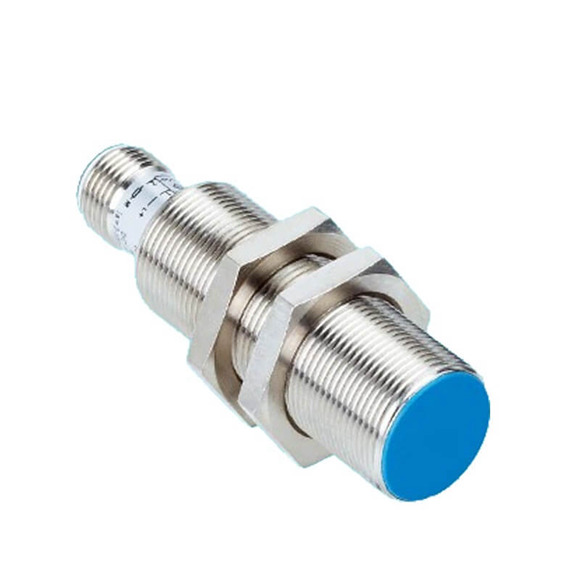

| Housing | Cylindrical thread design |
| Housing | Standard |
| Thread size | M12 x 1 |
| Diameter | Ø 12 mm |
| Sensing range Sn | 4 mm |
| Installation type | Non-flush |
| Switching frequency | 2,000 Hz |

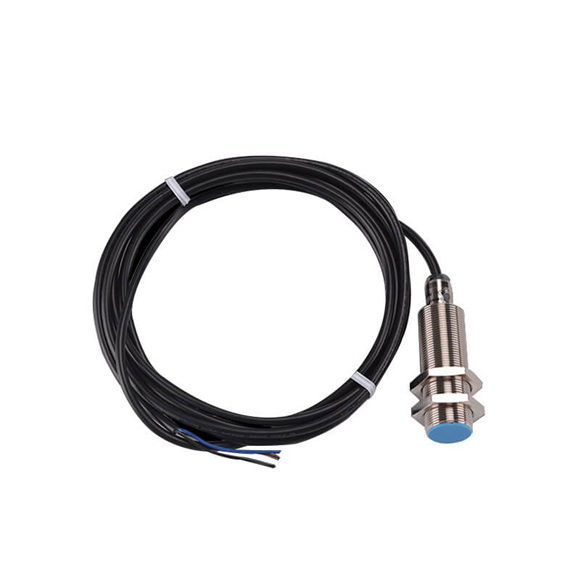

| Connection type | Cable, 3-wire, 5 m |
| Switching output | NPN |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP67 1) |
| Supply voltage | 10 V DC … 30 V DC |
| Ripple | ≤ 10 % 1) |
| Voltage drop | ≤ 1.2 V 2) |
| Current consumption | 20 mA 3) |
| Time delay before availability | ≤ 100 ms |
| Hysteresis | 2 % … 10 % |
| Reproducibility | ≤ 2 % 4) 5) |
| Temperature drift (of Sr) | ± 10 % |
| EMC | According to EN 60947-5-2 |
| Continuous current Ia | ≤ 200 mA |
| Cable material | PVC |
| Conductor size | 0.22 mm² |
| Short-circuit protection | ✔ |
| Reverse polarity protection | ✔ |
| Power-up pulse protection | ✔ |
| Shock and vibration resistance | 30 g, 11 ms / 10 … 55 Hz, 1 mm |
| Ambient operating temperature | –25 °C … +70 °C |
| Housing material | Brass, Nickel-plated brass |
| Sensing face material | Plastic |
| Housing length | 50 mm |
| Thread length | 35 mm |
| Tightening torque, max. | 10 Nm |
