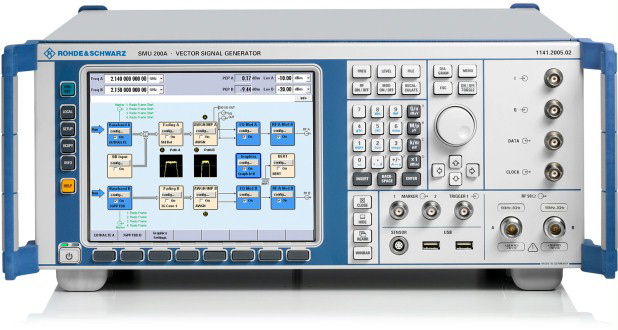

Rohde & Schwarz SMU200A Vector Signal Generator

Series#: Rohde & Schwarz

Product Details

• R&S® SMU200A Vector Signal Generator
• The R&S® SMU200A Vector Signal Generator not only combines up to two independent signal generators in one cabinet of only four height units, but it also offers unrivaled RF and baseband characteristics. The generator has been designed to meet all requirements encountered in research and development of modern communication systems as well as in their production.
• Due to its modular design, the R&S®SMU200A can be optimally adapted to the requirements of different applications. The first RF path can be equipped with one of the four available frequency options. The upper-frequency limit of 2.2 GHz / 3 GHz / 4 GHz or 6 GHz is user-selectable. In addition, a second RF path can be installed with upper-frequency limits of 2.2 GHz and 3 GHz. The lower frequency limit of all frequency options is 100 kHz.
• Features:
• First RF path from 100 kHz to 2.2/3/4/6 GHz
• Optional second RF path from 100 kHz to 2.2/3 GHz
• Up to two complete baseband paths
• Support of 3GPP LTE FDD and TDD, LTE Advanced, 3GPP FDD/HSPA/HSPA+, GSM/EDGE/EDGE Evolution, TD-SCDMA, WLAN, and all other important digital standards
• 2×2 MIMO with realtime fading possible
• Two instruments combinable for 2×4 or 4×2 MIMO
• Optional fading simulator with up to 40 fading paths
• I/Q modulator with 200 MHz RF bandwidth
• Optional baseband generator with realtime coder and arbitrary waveform generator
• Outstanding RF performance
