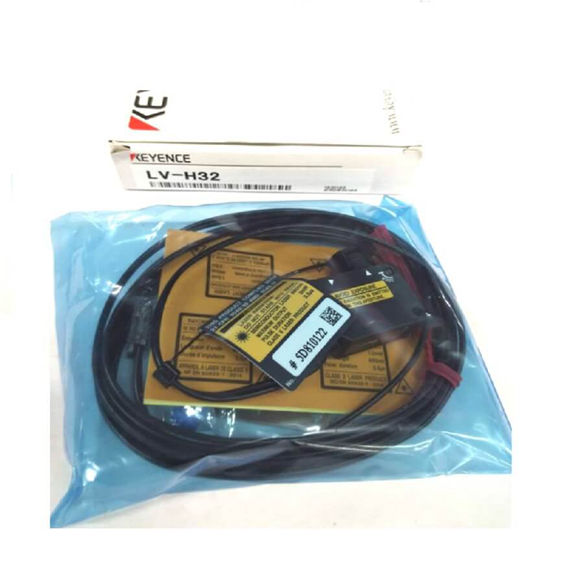

| Model | LV-H35 | LV-H32 | LV-H37 |
| Type | Straight-beam coaxial | Adjustable beam spot | Ultra-small beam spot |
| FDA (CDRH) Part 1040.10 | Class II |
| Light source | Visible red semiconductor laser |
| Wavelength | 660 nm |
| FINE | 150 mm 5.91″ | 30 to 250 mm 1.181″ to 9.842″ | 70 ±15 mm 2.76″ ±0.59″ |
| TURBO | 300 mm 11.81″ | 30 to 500 mm 1.181″ to 19.685″ |
| SUPER | 600 mm 23.62″ | 30 to 1000 mm 1.18″ to 39.37″ |
| Environmental resistance | -10 to +55 °C 14 to 131 °F (No freezing) |
| Ambient temperature |
| Relative humidity | 35 to 85 % RH (No condensation) |
| Material Case | Glass reinforced plastic *1 |
| Lens cover | Transparent plastic | Acrylic *2 | Glass *2 |
| Weight | Approx. 45 g |
|
|
|
|
| Model | LV-H64 | LV-H65 |
|
| Type | Long distance | Wide |
|
| FDA (CDRH) Part 1040.10 | Class II |
|
| Light source | Visible red semiconductor laser |
|
| Wavelength | 660 nm |
|
| Weight | Approx. 45 g |
|
|
|
|
|
| Model | LV-H47 | LV-H42 |
|
| Type | Area definite reflective | Long-distance area |
|
| FDA (CDRH) Part 1040.10 | Class II |
|
| Light source | Visible red semiconductor laser |
|
| Wavelength | 660 nm |
|
| Detecting distance FINE | 55 to 85 mm 2.17″ to 3.35″ | 250 mm 9.84″ |
|
| TURBO | 500 mm 19.69″ |
|
| SUPER | 1000 mm 39.37″ |
|
| Environmental resistance Ambient temperature | -10 to +55 °C 14 to 131 °F (No freezing) |
|
| Relative humidity | 35 to 85 % RH (No condensation) |
|
| Material Case | Glass reinforced plastic |
|
| Lens cover | Glass *1 | Polyarylate |
|
| Weight | Approx. 45 g |
|
|
|
|
|
| Model | LV-H62 | LV-H67 |
|
| Type | Small beam spot | High power |
|
| FDA (CDRH) Part 1040.10 | Class II |
|
| Light source | Visible red semiconductor laser |
|
| Wavelength | 660 nm |
|
| Detecting distanceFINE | 2 m 6.6′ | 20 m 65.6′ |
|
| TURBO | 5 m 16.4′ | 30 m 98.4′ |
|
| SUPER | 7 m 23.0′ | 30 m *2 98.4′ |
|
| Environmental resistance | -10 to +55 °C 14 to 131 °F (No freezing) |
|
| Ambient temperature |
|
| Weight | Approx. 45 g |
|
