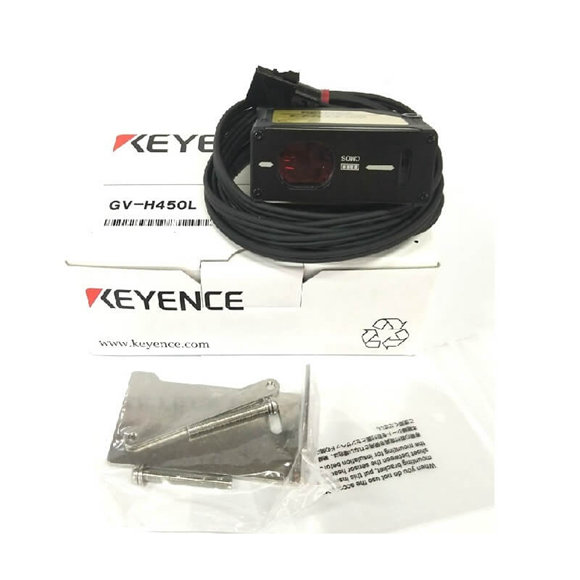

| Model | GV-H45 | GV-H45L | GV-H130 | GV-H130L | GV-H450 | GV-H450L | GV-H1000 | GV-H1000L |
| Type | Short-range | Mid-range | Long-range | Ultra long-range |
| Light source | Visible semiconductor laser, Wavelength: 655 nm |
| FDA (CDRH) Part 1040.10 | Class 2 (560 µW) | Class 1*3 (220 µW) | Class 2 (560 µW) | Class 1*3 (220 µW) | Class 2 (560 µW) | Class 1*3 (220 µW) | Class 2 (560 µW) | Class 1*3 (220 µW) |
| IEC 60825-1 | Class 1 (220 µW) | Class 1 (220 µW) | Class 1 (220 µW) | Class 1 (220 µW) |
| JIS C6802 |
| Detection distance | 20 to 45 mm 0.79″ to 1.77″ | 55 to 130 mm 2.17″ to 5.12″ | 160 to 450 mm 6.30″ to 17.72″ | 200 to 1000 mm 7.87″ to 39.37″ |
| (Amplifier display ) | (250 to 0)*1) | (750 to 0)*1) | (290 to 0)*1) | (800 to 0)*1) |
| Possible display range | 259 to -34 | 768 to -98 | 295 to -50 | 810 to -175 |
| Standard detection deviation | 0.5 mm 0.02″ | 1 mm 0.04″ | 3 mm 0.12″ | 20 mm 0.79″ (Detection distance |
| 200 to 800 mm 7.87″ to 31.5″) |
| 30 mm 1.18″ (Detection distance 800 |
| to 1000 mm 31.5″ to 39.37″) |
| Spot diameter | Approx. ø0.1 mm ø0.004″ | Approx. ø0.3 mm ø0.012″ | Approx. ø0.8 mm ø0.031″ | Approx. ø1.8 mm ø0.07″ |
| (Detection distance | (Detection distance | (Detection distance | (Detection distance |
| 45 mm 1.77″) | 130 mm 5.12″) | 450 mm 17.72″) | 1000 mm 39.37″) |
| Operation status indicators | Control output: Red LED/Laser radiation emission indicator: Green LED/1 spot indicator: Green LED |
| Environmental resistanceEnclosure rating | IP67 |
| Ambient temperature | -10 to +50 °C 14 to 122 °F (No freezing) |
| Relative humidity | 35 to 85 % RH (No condensation) |
| Vibration resistance | 10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z axis |
| Material | Housing material: PBT, Display: Polyarylate, Metal: SUS304, Lens cover: Glass, Cable: PVC |
| Weight | Approx. 120 g*2 | Approx. 130 g*2 | Approx. 190 g*2 | Approx. 210 g*2 |
