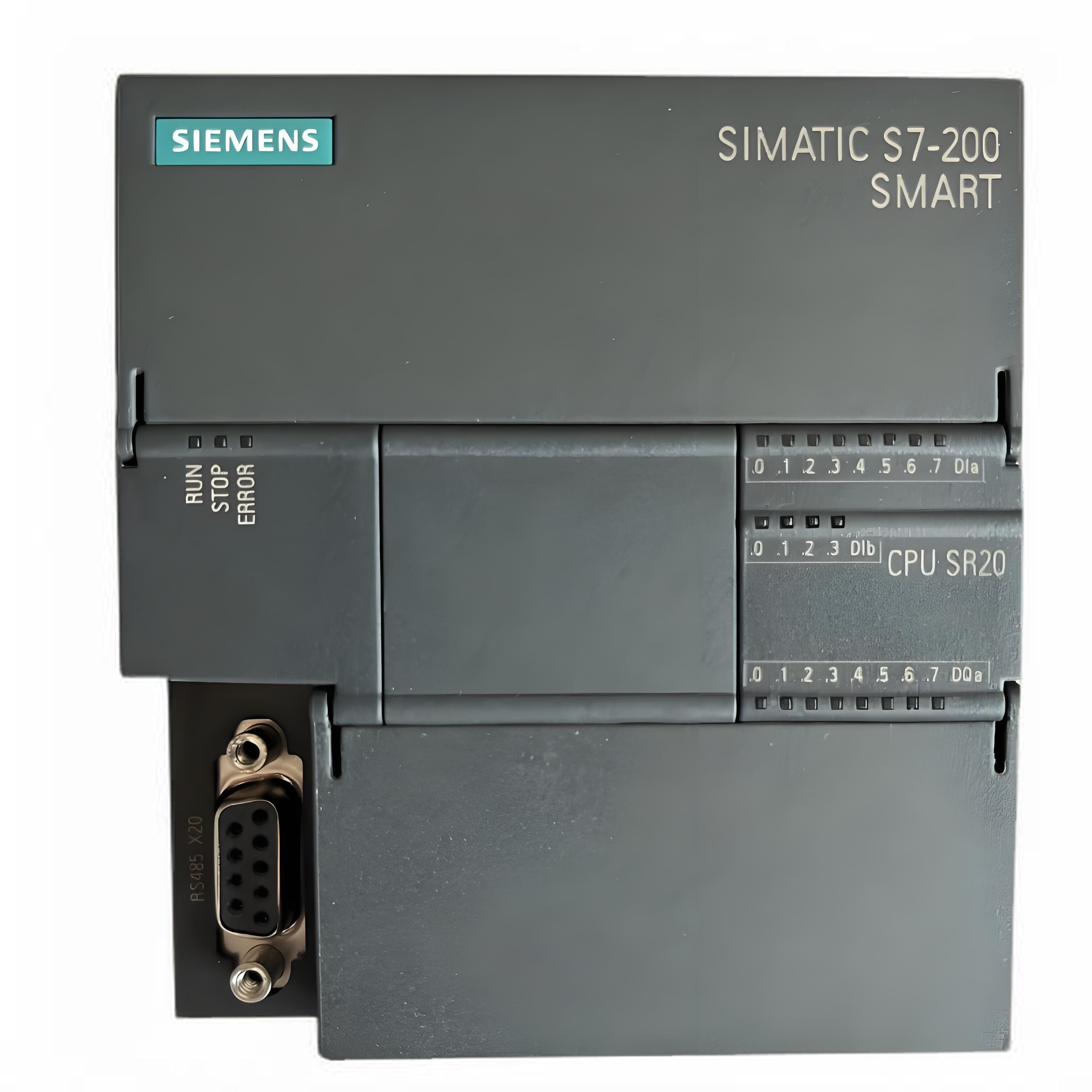

Siemens SIMATIC S7-200 SMART CPU SR20 6ES7 288-1SR20-0AA1

Basic Information

• Product Name: Siemens SIMATIC S7-200 SMART CPU SR20

• Model Number: 6ES7 288-1SR20-0AA1

• Brand: Siemens

Electrical Characteristics

• Power Supply: 220V AC

• Input/Output Types:

• Digital Inputs: 12

• Digital Outputs: 8 (Relay Outputs)

Memory

• Program/Data Memory: Specified capacity, suitable for handling various automation tasks (exact capacity may vary, please refer to official documentation)

Communication & Interfaces

• Ethernet Interface: Integrated PROFINET port for easy communication with other devices, programming, and data exchange

• Additional Interfaces: May support RS485/RS232 via optional communication signal boards

Built-in Functions

• Processor: Powerful CPU capable of handling real-time control tasks, data processing, and instruction output

• Other Functions: Includes high-speed counters, pulse outputs (PTO/PWM), and possibly other advanced control functions

Environmental Adaptability

• Operating Temperature Range: Designed for industrial environments, with a wide operating temperature range (specific range to be referenced in official documentation)

• Protection Rating: Provides appropriate dust and water protection for industrial applications

Programming & Software

• Programming Software: Uses Siemens STEP 7-Micro/Win software for programming, debugging, and monitoring

• Software Features: Supports graphical and textual programming, allowing for easy creation, editing, and debugging of PLC programs

Physical Characteristics

• Dimensions & Weight: Compact design suitable for installation in control cabinets; specific dimensions and weight may vary (please refer to official documentation)

• Mounting: Typically supports rail mounting for easy installation

Certifications & Compliance

• Product Certifications: Complies with relevant international standards and safety regulations, such as CE and UL (specific certifications to be referenced in official documentation)

• RoHS Compliance: Complies with RoHS directives, restricting the use of hazardous substances

Additional Notes

• Expansion Capabilities: Supports the addition of various expansion modules, such as digital and analog I/O modules, communication modules, and signal boards, for increased functionality

• Application Areas: Widely used in various automation applications, including robotics, packaging machines, handling equipment, compressors, and generators
