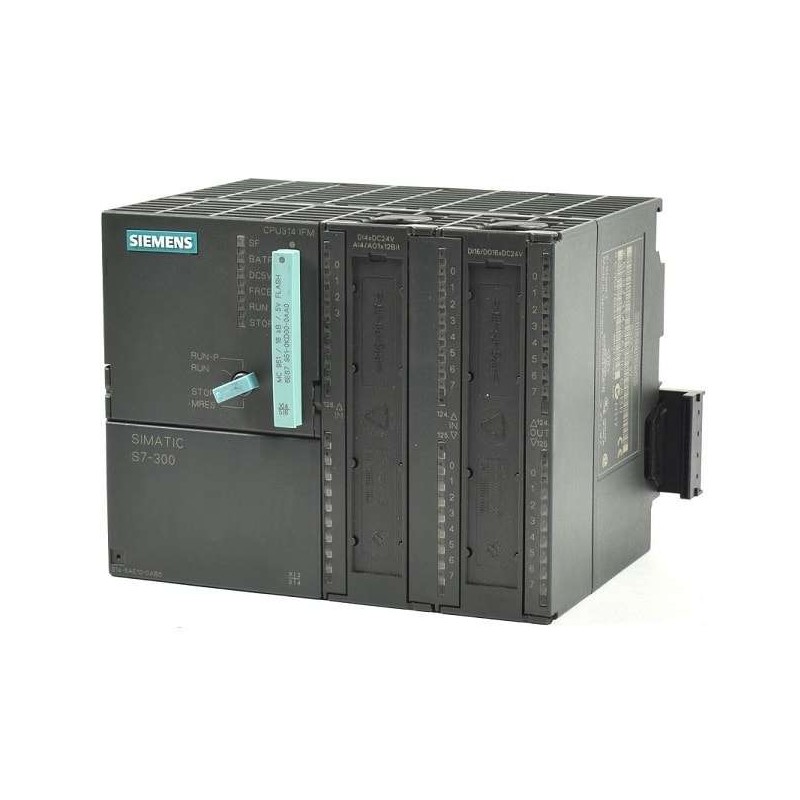

Specification Sheet for Siemens SIMATIC S7-300, CPU 314 IFM COMPACT with Slot F, 6ES7314-5AE10-0AB0
Basic Information
Product Model: 6ES7314-5AE10-0AB0
Product Series: SIMATIC S7-300
CPU Type: CPU 314 IFM COMPACT with Slot F
Application Areas: Chemical, Electronics, Electrical, Process Control, and other industrial automation fields requiring integrated I/O functionality and expansion capabilities
Hardware Characteristics
Integrated I/O:
16 Digital Inputs (DI)
16 Digital Outputs (DO)
4 Analog Inputs (AI)
1 Analog Output (AO)
Interface: Communication via MPI interface, with expansion slot F for additional modules
Connector Type: 2 x 40-pin connectors for I/O connections
Power Supply: Integrated 24 V DC, with a tolerance range of 19.2 V to 28.8 V
Power Protection: External protection recommended for power supply cables
Memory Configuration
Working Memory: 32 KByte
Load Memory: Not specified directly, typically managed through internal flash memory or optional external storage
Retentive Memory: Available for retentive data blocks, size allocation from available memory
Programming Environment
Supported Software: STEP 7 V5.5 + SP1 or higher, or compatible versions as specified by Siemens
Processing Capabilities
Bit Operation Time: Approximately 0.1 µs
Word Operation Time: Approximately 0.24 µs
Fixed-Point Arithmetic Operation Time: Approximately 0.32 µs
Floating-Point Arithmetic Operation Time: Approximately 1.1 µs
Additional Features
Program Block Quantities:
Maximum number of Data Blocks (DBs): Depends on available memory but comparable to similar CPU models
Maximum number of Function Blocks (FBs) and Functions (FCs): Depends on available memory but comparable to similar CPU models (each with a maximum size of 32 KByte or as allowed by memory)
Types and quantities of Organization Blocks (OBs): Including OB1, OB10, OB20/21, OB32/33/34/35, OB40, OB100, OB80/82/85/87, OB121/122, etc., as supported by the CPU and memory configuration
Counters and Timers:
S7 Counters: Unlimited (limited only by RAM capacity), with retentivity
S7 Timers: Unlimited (limited only by RAM capacity), with retentivity
Expansion Capabilities: Slot F allows for the addition of communication or I/O modules to expand system functionality
