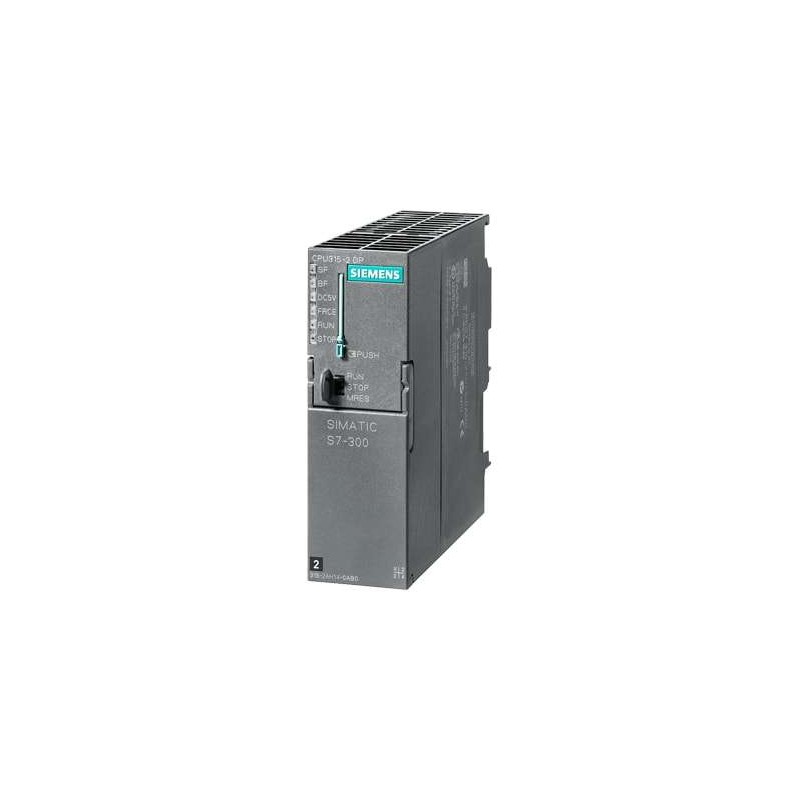

Siemens SIMATIC S7-300, CPU 315-2DP 6ES7315-2AG10-0AB0

Specification Sheet for Siemens SIMATIC S7-300, CPU 315-2DP 6ES7315-2AG10-0AB0

Basic Information

• Product Model: 6ES7315-2AG10-0AB0

• Product Series: SIMATIC S7-300

• CPU Type: CPU 315-2DP

• Application Areas: Chemical, Electronics, Electrical, and other industrial automation fields requiring high-performance processing and communication capabilities.

Hardware Characteristics

• Integrated Interfaces:

• MPI interface for basic communication

• DP (PROFIBUS DP) master/slave interface for high-speed communication with other PROFIBUS devices

• Power Supply: Built-in 24 V DC, allowing a range of 19.2 V to 28.8 V

• Power Protection: External protection recommended (for power supply cables)

• Micro Memory Card Required: For program and data storage

Memory Configuration

• Work Memory: 128 KByte, providing ample space for program execution and temporary data storage

• Load Memory (Micro Memory Card): Capacity depends on the Micro Memory Card used, but typically supports large programs and data sets

• Retentive Memory: Available for retentive data blocks, ensuring data persistence across power cycles

Programming Environment

• Supported Software: STEP 7 V5.5 + SP1 or higher, providing a comprehensive development environment for programming, configuration, and diagnostics

Processing Capabilities

• Enhanced processing power compared to lower-end CPUs in the S7-300 series

• Bit, Word, Fixed-Point, and Floating-Point arithmetic operation times similar to or faster than the CPU 312, depending on specific operations and program complexity

Additional Features

• Program Block Quantities:

• Maximum number of Data Blocks (DBs): High capacity, allowing for extensive data storage and manipulation

• Maximum number of Function Blocks (FBs) and Functions (FCs): High capacity, enabling complex control strategies and algorithms

• Types and quantities of Organization Blocks (OBs): Comprehensive set of OBs, including OB1 for cyclic program execution, OB10-OB17 for interrupts, OB30-OB38 for time-controlled events, OB80-OB87 for error handling, and more

• Counters and Timers:

• S7 Counters: Unlimited (limited only by RAM capacity), with retentivity for maintaining counter values across power cycles

• S7 Timers: Unlimited (limited only by RAM capacity), with retentivity for maintaining timer settings and states across power cycles

Notes

• The above specification sheet is based on publicly available information and may be subject to change due to product updates.

• It is recommended to consult the latest official documentation or contact Siemens technical support for the most accurate information before purchase or use.

• The CPU 315-2DP offers advanced communication capabilities through its PROFIBUS DP interface, making it suitable for applications requiring high-speed communication with other devices on the PROFIBUS network.
