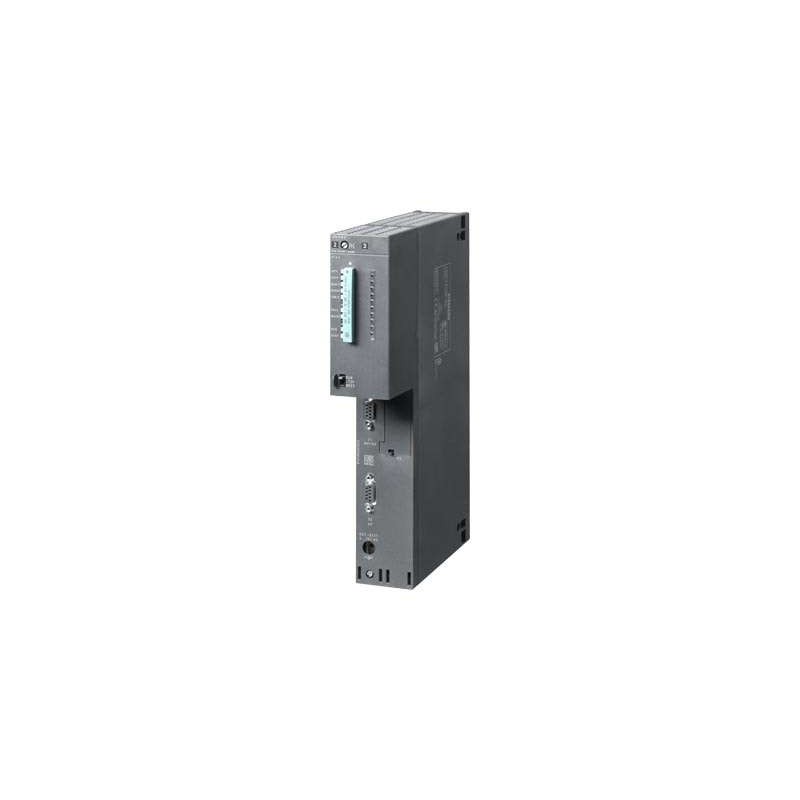

6ES7416-3XR05-0AB0 Siemens SIMATIC S7-400, CPU 416-3

Specification Sheet for Siemens SIMATIC S7-400, CPU 416-3 (6ES7416-3XR05-0AB0)

Basic Information

• Product Model: 6ES7416-3XR05-0AB0

• Product Series: SIMATIC S7-400

• CPU Type: CPU 416-3

• Application Areas: High-end industrial automation, process control, and manufacturing systems requiring high performance and scalability

Hardware Characteristics

• Integrated Interfaces:

• 1st Interface: MPI/DP, supporting 12 Mbit/s communication speed

• 2nd Interface: PROFIBUS DP, for high-speed communication with PROFIBUS devices

• 3rd Interface: Plug-in IFM (Interface Module) slot, allowing for additional communication interfaces or expansion modules

• Power Supply: Typically requires an external 24 V DC power supply with compatibility range specified by Siemens

• Power Protection: External protection measures recommended for both power supply and communication cables

Memory Configuration

• Work Memory: Total 11.2 MB, split into:

• 5.6 MB for Code (Program Memory)

• 5.6 MB for Data (Working Memory)

• Load Memory: Typically configured with an internal flash memory, but may support additional storage media for backup and expansion

• Retentive Memory: Available for storing retentive data blocks, size and details depend on configuration and memory allocation

Programming Environment

• Supported Software: STEP 7 Professional or higher versions, ensuring compatibility with advanced programming features and configurations

Processing Capabilities

• Processing speed and operation times will vary based on the specific application, program complexity, and available memory. However, the CPU 416-3 is designed for high-end applications requiring fast processing and large memory capacities.

• The CPU supports a wide range of arithmetic, logic, and control operations with optimized performance for industrial automation tasks.

Additional Features

• Program Block Quantities:

• Maximum number of Data Blocks (DBs): Dependent on memory allocation, but supports large databases for complex applications

• Maximum number of Function Blocks (FBs) and Functions (FCs): Limited primarily by memory capacity, supporting a large number of reusable code blocks

• Types and quantities of Organization Blocks (OBs): Includes standard OBs (e.g., OB1 for cyclic program execution) and special OBs (e.g., OB80 for hardware interrupts)

• Counters and Timers:

• S7 Counters and Timers: Unlimited (limited only by RAM capacity), with retentivity for maintaining values across power cycles

• Additional Modules: Supports a range of plug-in modules, including communication interfaces, input/output modules, and specialized function modules

Notes

• The above specification sheet is based on publicly available information and may be subject to change due to product updates.

• It is strongly recommended to consult the latest official documentation or contact Siemens technical support for the most accurate information before purchase or use.

• The actual performance and capabilities of the CPU 416-3 may vary depending on the specific configuration, software version, and application requirements.
