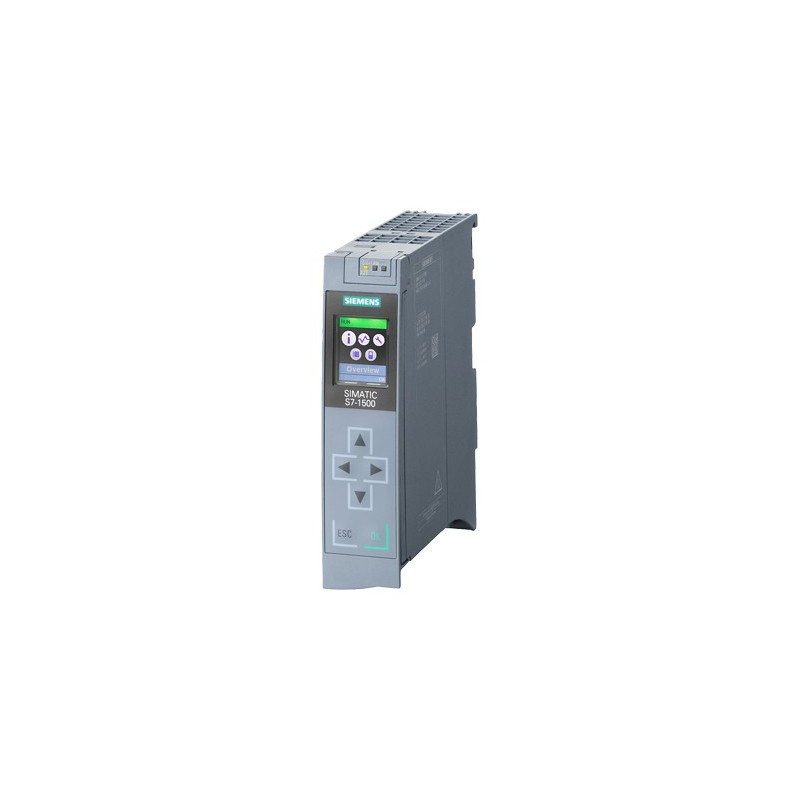

Siemens SIMATIC S7-1500, CPU 1511-1 PN, 6ES7511-1AK01-0AB0

Specification Sheet for Siemens SIMATIC S7-1500, CPU 1511-1 PN, 6ES7511-1AK01-0AB0

Basic Information

Product Model: 6ES7511-1AK01-0AB0
Product Series: SIMATIC S7-1500
CPU Type: CPU 1511-1 PN, High-Performance CPU with Integrated PROFINET Interface
Application Areas: Ideal for demanding and complex industrial automation projects across various industries, including automotive, manufacturing, and process control

Hardware Characteristics

• Processor Performance: Optimized for high-speed processing of control logic and advanced applications.

• Work Memory:

• Program Memory: 150 KB, suitable for storing large and complex automation programs.

• Data Memory: 1 MB, providing ample space for extensive data storage and processing.

• Integrated Interface:

• 1st Interface: PROFINET IRT with 2-port switch, enabling high-speed and reliable network communication with other devices and systems.

• Bit Performance: 60 ns, ensuring fast and efficient data transfer.

• Power Supply: Typically requires an external 24 V DC power supply, compatible with standard industrial power sources.

• Compact Design: Despite its powerful capabilities, the CPU features a compact design for easy integration into various industrial environments.

Memory Configuration

• Program/Data Memory: As specified above, with ample space for both program and data storage.

• SIMATIC Memory Card: Required for initial configuration and program storage. Supports convenient data backup and transfer.

Programming Environment

• Supported Software: TIA Portal (Totally Integrated Automation Portal) V13 or higher, providing an advanced and intuitive platform for programming, configuration, and diagnostics.

• Programming Languages: Supports Ladder Diagram (LD), Function Block Diagram (FBD), Structured Text (ST), and Instruction List (IL), allowing for flexible and efficient programming to suit various application requirements.

Processing Capabilities

• Optimized Performance: Designed for demanding automation tasks, the CPU 1511-1 PN delivers fast and reliable execution of control logic, arithmetic operations, and complex algorithms.

• Real-Time Capabilities: Supports PROFINET IRT (Isochronous Real-Time), enabling low-latency communication for time-critical applications.

Additional Features

• Program Block Quantities: Maximum number of Data Blocks (DBs), Function Blocks (FBs), Function Codes (FCs), and Organization Blocks (OBs) specified by TIA Portal limitations and CPU memory capacity.

• Counters and Timers: Includes a range of S7 Counters and Timers with retentivity, ensuring accurate timing and counting functions even during power outages.

• Onboard Diagnostics: Comprehensive diagnostic tools for easy troubleshooting, maintenance, and monitoring of system health.

• High Scalability: Can be easily expanded with additional I/O modules and communication interfaces to meet specific application requirements.

• PROFINET Integration: Direct integration with PROFINET networks, simplifying system integration and enhancing interoperability with other Siemens and third-party devices.

Notes

The above specification sheet is based on publicly available information and may be subject to change due to product updates. It is recommended to consult the latest official documentation or contact Siemens technical support for the most accurate information before purchase or use. The CPU 1511-1 PN is part of the SIMATIC S7-1500 family, offering a high-performance and scalable solution for demanding industrial automation applications.
