6ES7151-8AB01-0AB0 Siemens SIMATIC DP, IM151-8 PN/DP CPU f. ET200S interface module

Specification Sheet for Siemens SIMATIC DP, IM151-8 PN/DP CPU for ET200S (Model: 6ES7151-8AB01-0AB0)

Product Overview:

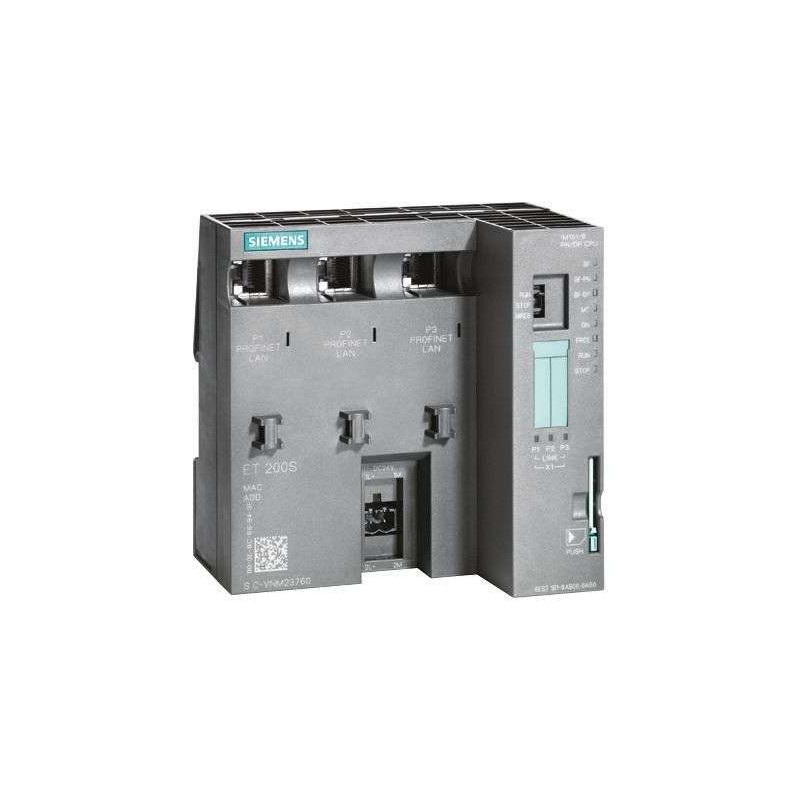

The Siemens 6ES7151-8AB01-0AB0 is an advanced interface module designed for use in the SIMATIC ET200S distributed I/O system. This module, known as the IM151-8 PN/DP CPU, incorporates a powerful CPU, 192 KB of working memory, and an integrated PROFINET interface with three RJ45 ports, allowing it to function as an IO controller in industrial automation networks. It also supports PROFIBUS DP communication, providing flexibility in network configurations.

Model Information:

• Model Number: 6ES7151-8AB01-0AB0

• Series: SIMATIC ET200S

• Type: IM151-8 PN/DP CPU

Key Features & Specifications:

1. Integrated CPU: The IM151-8 PN/DP CPU combines an interface module with a built-in CPU, providing robust processing power for complex automation tasks.

2. PROFINET Interface:

• Type: Integrated PROFINET

• Ports: Three RJ45

• Enables seamless integration into PROFINET networks, allowing for high-speed, reliable communication with other devices on the network.

3. PROFIBUS DP Support: In addition to PROFINET, the module also supports PROFIBUS DP communication, making it suitable for hybrid networks or environments where both protocols are used.

4. Working Memory:

• Capacity: 192 KB

• Provides ample space for storing programs, data, and parameters, supporting more complex applications.

5. Battery-less Design: The module does not require a battery for operation, reducing maintenance requirements and costs.

6. SIMATIC MMC Not Required: For this model, an external SIMATIC MMC (Memory Card Module) is not required for basic operation. However, it may still be used for advanced configuration, programming, and data management.

7. Programming & Configuration:

• Compatible with Siemens TIA Portal (Totally Integrated Automation Portal) software

• Allows users to configure the module, create and upload/download programs, and manage data using a PC-based interface.

8. Scalability: As part of the ET200S system, the IM151-8 PN/DP CPU can be expanded with additional I/O modules to accommodate the specific needs of industrial automation projects.

9. Environmental Compatibility:

• Designed for use in industrial environments

• Meets or exceeds relevant standards for temperature, humidity, and vibration resistance.

Technical Details:

• Power Supply: Depends on the ET200S system configuration

• Operating Temperature Range: As specified by the ET200S system

• Humidity Range: As specified by the ET200S system

• Ethernet Specifications:

• Speed: Dependent on network configuration and hardware

• Protocol Support: PROFINET, PROFIBUS DP (via internal or external converters)

• Compliance: Complies with international standards for industrial automation equipment

Applications:

The 6ES7151-8AB01-0AB0 is suitable for industrial automation applications requiring high-speed, reliable communication over PROFINET and/or PROFIBUS DP networks. Its advanced features, including the integrated PROFINET interface with three RJ45 ports and 192 KB of working memory, make it an ideal choice for:

• Process control systems

• Manufacturing lines

• Machine automation

• Plant-wide communication networks

• Any application requiring advanced processing capabilities, large working memory, and flexible network communication options.

Conclusion:

The Siemens SIMATIC DP, IM151-8 PN/DP CPU for ET200S (Model: 6ES7151-8AB01-0AB0) is a highly capable interface module that combines an integrated CPU, 192 KB of working memory, and an integrated PROFINET interface with three RJ45 ports. Its support for both PROFINET and PROFIBUS DP communication, along with its scalability and robust design, make it a versatile and powerful solution for industrial automation projects.
