| Cylinder type | T-slot |
| Cylinder types with adapter | Profile cylinder |
| Tie rod cylinder |
| Round body cylinder |
| Dovetail groove cylinder |
| SMC rail CDQ2 |
| SMC rail ECDQ2 |
| Housing length | 29.5 mm |
| Switching output | PNP |
| Switching frequency | 1,000 Hz |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP65 1) |
| IP67 |
|
|
| Supply voltage | 10 V DC … 30 V DC |
| Power consumption | 8 mA 1) |
| Voltage drop | ≤ 2 V |
| Continuous current Ia | ≤ 100 mA |
| Protection class | III |
| Response sensitivity, typ. | 3 mT |
| Overrun distance, typ. | 10 mm |
| Hysteresis, typ. | < 0.8 mT |
| Reproducibility | ≤ 0.1 mT 2) |
| Status indicator LED | ✔ |
| Reverse polarity protection | ✔ |
| Short-circuit protection | ✔ |
| Ambient operating temperature | –30 °C … +80 °C |
| MTTFd: mean time to dangerous failure | 1,600 years |
| Shock and vibration resistance | 30 g, 11 ms / 10 … 55 Hz, 1 mm |
| EMC | According to EN 60947-5-2 |

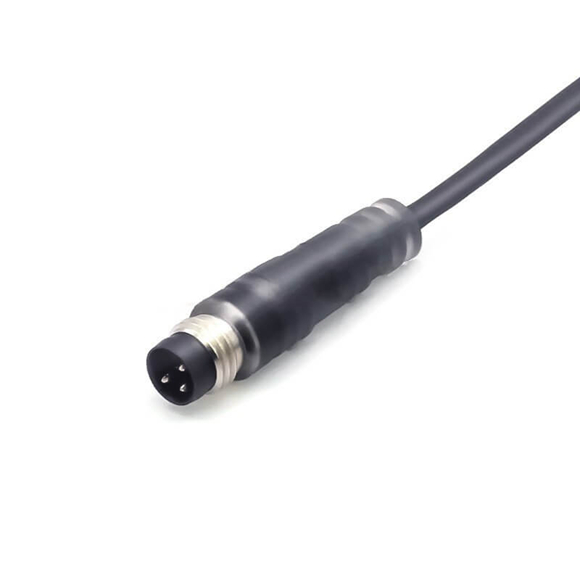

| Connection type | Cable with connector M8, 3-pin, drag chain use, 0.3 m |
