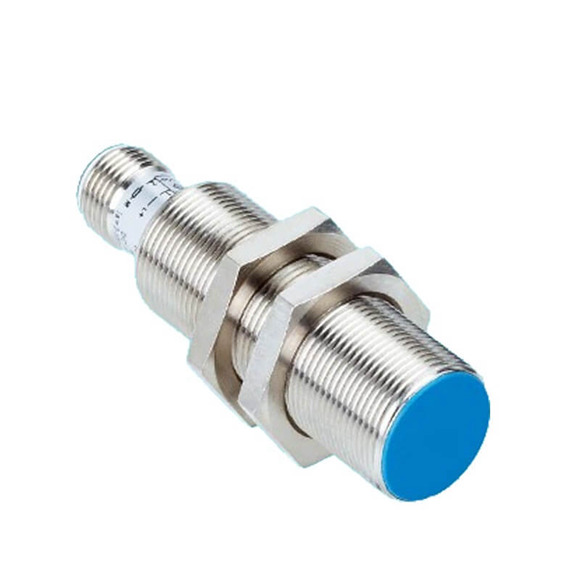

| Housing | Cylindrical thread design |
| Thread size | M30 x 1.5 |
| Diameter | Ø 30 mm |
| Sensing range Sn | 20 mm |
| Safe sensing range Sa | 16.2 mm |
| Installation type | Flush |
| Switching frequency | 100 Hz |
| Connection type | Male connector M12, 4-pin |
| Switching output | NPN |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP68, IP69K 1) |
| Special features | Sensing face made of stainless steel V4A, Resistant to cleaning agents, triple sensing range, Visual adjustment indicator |
| Special applications | Hygienic and washdown zones, Difficult application conditions |
|
|
| Supply voltage | 10 V DC … 30 V DC |
| Ripple | ≤ 20 % 1) |
| Voltage drop | ≤ 2 V 2) |
| Current consumption | 10 mA 3) |
| Time delay before availability | ≤ 40 ms |
| Hysteresis | 1 % … 15 % |
| Reproducibility | ≤ 5 % 4) 5) |
| Temperature drift (of Sr) | ≤ 10 % |
| EMC | According to EN 60947-5-2 |
| Continuous current Ia | ≤ 200 mA |
| Short-circuit protection | ✔ |
| Reverse polarity protection | ✔ |
| Power-up pulse protection | ✔ |
| Shock and vibration resistance | 30 g, 11 ms / 10 … 55 Hz, 1 mm |
| Ambient operating temperature | –25 °C … +85 °C |
| Housing material | Stainless steel V4A, DIN 1.4404 / AISI 316L |
| Sensing face material | Stainless steel V4A, DIN 1.4404 / AISI 316L |
| Housing length | 63.5 mm |
| Thread length | 42 mm |
| Tightening torque, max. | ≤ 150 Nm |
| Items supplied | Mounting nut, V4A stainless steel (2x) |
| Washer, V4A stainless steel, with locking teeth (2x) |
| Protection class | III |
| UL File No. | E191603 |
