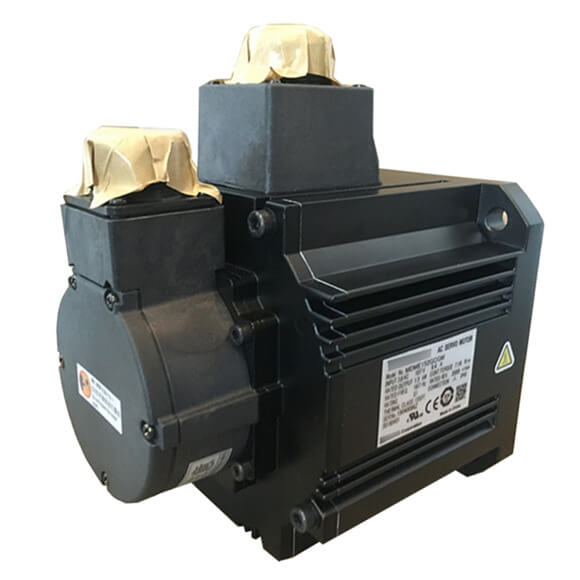

| Panasonic Servo Motor MINAS A6 | AC200 V |
| Panasonic Servo Motor MINAS A6 IP67 | MHMF152L1□□ |
| Multifunction type | MDDLT55SF |
| RS485 communication type *2 | MDDLN55SG |
| Basic type *2 | MDDLN55SE |
| Frame symbol | D-frame |
| Power supply capacity(kVA) | 2.9 |
| Rated output(W) | 1500 |
| Rated torque(N•m) | 7.16 |
| Continuous stall torque(N•m) | 7.52 |
| Momentary Max. peak torque(N•m) | 21.5 |
| Rated current(A(rms)) | 8 |
| Max. current(A(o-p)) | 34 |
| Regenerative brake frequency (times/min) Note)1Without option | No limit Note)2 |
| DV0P4284 | No limit Note)2 |
| Rated rotational speed(r/min) | 2000 |
| Max. rotational speed(r/min) | 3000 |
| Moment of inertia of rotor (×10−4 kg•m2) | 33.4 |
| Without brake |
| With brake | 34.6 |
| Recommended moment of inertia ratio of the load and the rotor | 5 times or less |
| Rotary encoder specifications *3 | 23-bit Absolute |
| Resolution per single turn | 8388608 |
