| Item | Specifications | ||

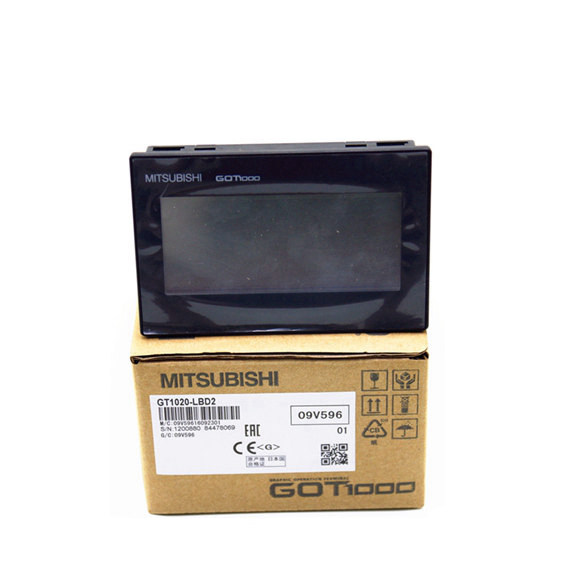

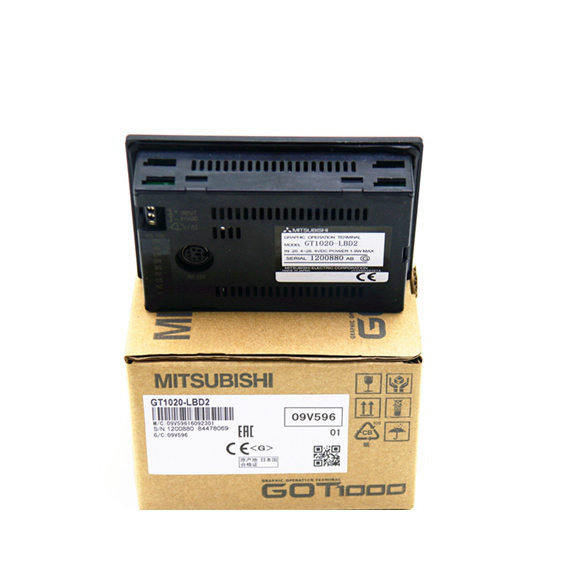

| GT1020-LBD/LWD | GT1020-LBD2/LWD2 | GT1020-LBL/LWL | |
| Display section | STN monochrome (white/black) liquid crystal | ||
| Screen size | 3.7″ | ||
| Resolution | 160 64 dots (Horizontal format) | ||
| Display size | W86.4(3.4) H34.5(1.35) [mm](inch) (Horizontal format) | ||
| Display character | 16-dot standard font: 20 characters 4 lines (Horizontal format) | ||
| Display color | Monochrome (white/black) | ||
| Display angle | Left/Right: 30 degrees, Top: 20 degrees, Bottom: 30 degrees (Horizontal format) | ||
| Contrast adjustment | 16-level adjustment | ||
| Intensity of LCD only | 200 [cd/m2] (in green) | ||
| Life | Approx. 50,000h. (Time for display intensity to become 1/5 at operating ambient temperature of 25) | ||
| Backlight | LED with 3 available colors (green, red, orange) (no replacement required), Backlight status (colors, ON/BLINK/OFF) control, Adjustable screensaver activation time Setting the system information*2 enables PLC to control the backlight status. | ||
| Touch panel Number of touch keys | Maximum 50 keys/screen (Analog resistive film touch panel) | ||
| Key size | Minimum 2 2 dots (per key) | ||
| Simultaneous pressing of two (or more) areas (2-point press) | Not supported (Simultaneous pressing of two or more areas on the screen may activate the switch between those areas.) | ||
| Life | 1 million times or more (operating force 0.98N max.) | ||
| Memory C drive*3 | Flash memory (Internal), for storing project data (512 Kbytes or less), OS, Alarm history, Recipe data and time action setting value | ||
| life (Number of write times) | 100,000 times | ||
|
Built-in interface
PLC communication | • RS-422 1ch Transmission speed: 115,200/57,600/38,400/ 19,200/9,600/4,800bps Connector shape: Connector terminal block 9 pins Application: PLC communication (Hardware version A to D) • RS-422/485 1ch Transmission speed: 115,200/57,600/38,400/ 19,200/9,600/4,800bps Connector shape: Connector terminal block 9 pins Application: PLC communication Terminating resistor*4: Open/110 /330 (Switched by terminating resistor selector switch) (At factory shipment: 330 ) (Hardware version E or later) |
RS-232 1ch Transmission speed: 115,200/57,600/38,400/ 19,200/9,600/4,800bps Connector shape: Connector terminal block 9 pins Application: PLC communication |
RS-422 1ch Transmission speed: 115,200/57,600/38,400/ 19,200/9,600/4,800bps Connector shape: Connector terminal block 9 pins Application: PLC communication |
|
PC communication | RS-232 1ch Transmission speed : 115,200/57,600/38,400/19,200/9,600/4,800bps Connector shape : MINI DIN 6 pins (Female) Application : PC communication (Project data upload/download, OS installation, transparent function) | ||
| Buzzer output (a buzzer that sounds when touch keys are pressed) | Single tone (LONG/SHORT/OFF adjustable) | ||
| Environmental protective structure*5 | Equivalent to IP67 (JEM1030) (front section) (Horizontal format) | ||
| External dimensions | W113(4.44) H74(2.91) D27(1.06) [mm](inch) (Horizontal format) | ||
| Panel cutting dimensions | W105(4.13) H66(2.59) [mm](inch) (Horizontal format) | ||
