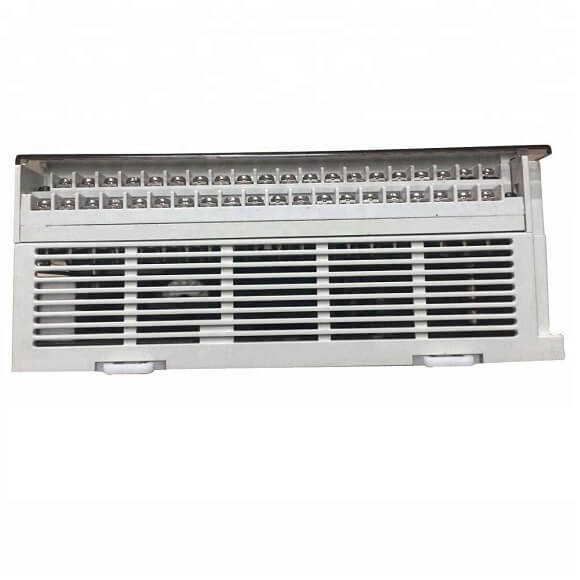

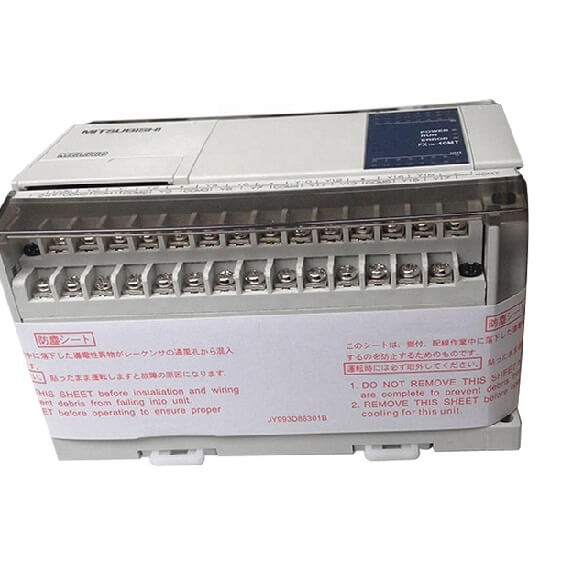

| Mitsubishi PLC Module FX1N | Specification |
| Operation control method | Cyclic operation by stored program |
| I/O control method | Batch processing method (when END instruction is executed) |
| Operation processing time | Basic instructions: 0.55 to 0.7 msApplied instructions: 1.65 to several 100 ms |
| Programming language | Relay symbolic language + step ladder |
| Program capacity | 8K steps |
| Number of instructions | Basic sequence instructions: 29 Step ladder instructions: 2 Applied instructions: 89 |
| I/O configuration | Max hardware I/O configuration points 128, dependent on user selection (Max. software addressable Inputs 128, Outputs 128) |
| State relays (S coils) Latched | 1000 points |
| State relays (S coils) Initial | 10 points (subset) |
| Timers (T) 100 msec | Range: 0 to 3,276.7 sec200 points |
| Timers (T) 10 msec | Range: 0 to 327.67 sec46 points |
| Timers (T) 1 msec | Range: 0 to 32.767 sec4 point |
| Timers (T) 100 msecretentive | Range: 0 to 3,276.7 sec6 points |
| Counters (C) General | Range: 1 to 32,767 counts16 points |
| Latched | 184 points (subset) |
| General | Range: 1 to 32,767 counts20 points |
| Latched | 15 points (subset) |
| Range: -2,147,483,648 to+2,147,483,647 counts |
| Select upto four 1 phase counters with a combined counting frequency of 5kHz or less. |
| High speed counters (C) | Alternatively select one 2 phase or A/B phase counter with a counting fre- quency of 2kHz or less. |
| 1 phase | Note all counters are latched |
| 1 phasec/w start stop input |
|
| 2 phase |
|
| A/B phase |
|
| General | 7128 points |
| Latched | 872 points (subset) |
| File | 7000 points |
| Externally adjusted | Range: 0 to 2552 points |
| Special | 256 points (inclusive of D8013, D8030and D8031) |
| Index | 16 points |
| Pointers with CALL | 128 points |
| For use with interrupts | 6 points |
| Nest levels | 8 points for use with MC and MCR |
| Decimal K | 16 bit: -32,768 to +32,76732 bit: -2,147,483,648 to +2,147,483,647 |
| Hexadeci-mal H | 16 bit: 0000 to FFFF32 bit: 00000000 to FFFFFFFF |
