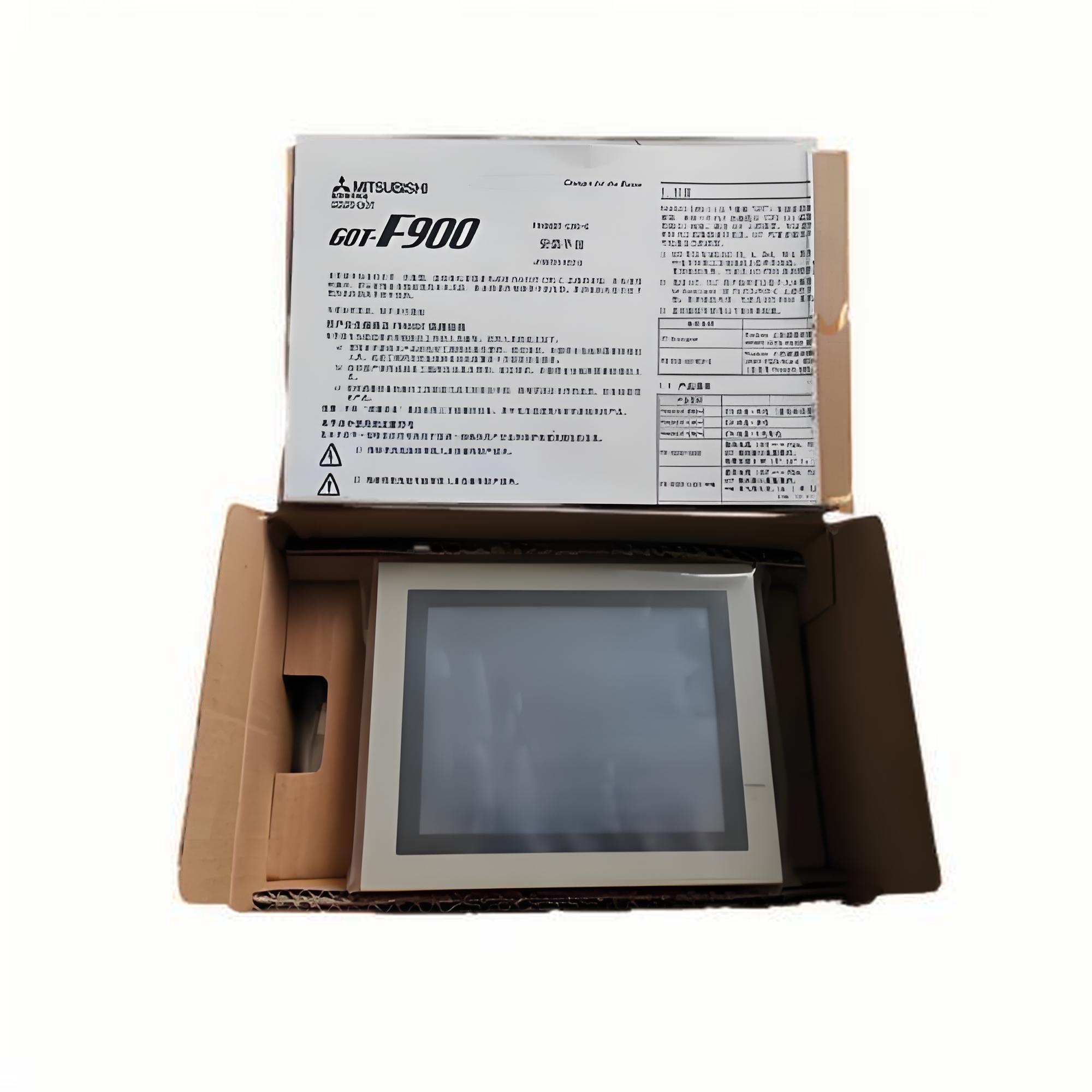

F940GOT-LWD-C

F940GOT-LWD-C

1. ‌General Features‌

• ‌Product Type‌: Mitsubishi Electric Graphic Operation Terminal (GOT), part of the F940GOT series‌12.

• ‌Core Functions‌: Touchscreen operation of PLC elements, multi-screen navigation, data monitoring, and communication with PLCs/inverters‌12.

• ‌Compatibility‌: Compatible with Mitsubishi FX and A series PLCs‌1.

2. ‌Hardware Specifications‌

• ‌Power Supply‌: 24V DC (operating range: +10%/-15%)‌3.

• ‌Display‌:

• ‌Screen Type‌: STN monochrome LCD (2 colors: white/blue)‌3.

• ‌Resolution‌: 320×240 pixels‌3.

• ‌Environmental Conditions‌:

• Operating temperature: 0–50°C; Humidity: 35–85% RH (non-condensing)‌3.

• Protection Rating: IP65F (dust/water resistant)‌3.

• ‌Interfaces & Communication‌:

• Supports RS-232C/RS-422 communication ports (specific interface types may vary; refer to other models in the series)‌13.

3. ‌Reference for Alternative Models‌

• Partial specifications of the ‌F940GOT-BWD-C‌ (same series) may apply‌3:

• ‌Power Consumption‌: ~410mA/24V DC (backlight off)‌3.

• ‌Storage‌: Built-in lithium battery (PM-20BL, ~5-year lifespan)‌3.

4. ‌Recommendations for Accessing English Documentation‌

• ‌Official Channels‌: Contact Mitsubishi Electric’s official website or authorized distributors for the English technical manual of "F940GOT-LWD-C"‌12.

• ‌Similar Manuals‌: Review English manuals of the F900 series or other F940GOT sub-models for shared parameters‌

•
