| Item | Specifications | |||

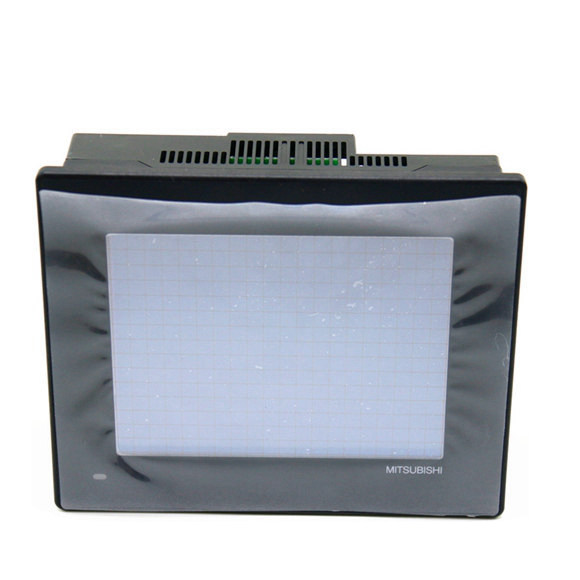

| Mitsubishi HMI Touch screen GT1045 | GT1045-QSBD | GT1040-QBBD | ||
| Display section*1 Type | STN color liquid crystal | STN monochrome (white/blue) liquid crystal | ||
| Screen size | 4.7″ | |||
| Resolution | 320 240 dots (Horizontal format) | |||
| Display size | W96(3.77) H72(2.83) [mm](inch) (Horizontal format) | |||
| Display character | 16-dot standard font: 40 characters 15 lines (Horizontal format) 12-dot standard font: 53 characters 20 lines (Horizontal format) | |||
| Display color | 256 colors | Monochrome (white/blue), 16 scales | ||
| Display angle | Left/Right: 50 degrees, Top: 40 degrees, Bottom: 70 degrees (Horizontal format) | Left/Right: 45 degrees, Top: 20 degrees, Bottom: 40 degrees (Horizontal format) | ||
| Contrast adjustment | 16-level adjustment | |||
| Intensity of LCD only | 150 [cd/m2] | 300 [cd/m2] | ||
| Life | Approx. 50,000h. (Time for display intensity to become 1/5 at operating ambient temperature of 25) | |||
| Backlight | LED Backlight off/screen saving time can be set. | |||
| Touch panel Number of touch keys | Maximum 50 keys/screen (Matrix resistive film touch panel) | |||
| Key size | Minimum 16 | 16 dots (per key) | ||
| Number of points touched simultaneously | Maximum of 2 points | |||
| Life | 1 million times or more (operating force 0.98N max.) | |||
| Memory C drive*2 | Flash memory (Internal), for storing project data (3Mbytes or less), OS | |||
| Life (Number of write times) | 100,000 times | |||
| D drive | SRAM (Internal), for storing alarm history, recipe data and time action setting value | |||
| Battery | GT11-50BAT lithium battery | |||
| Backup target | Clock data, alarm history, recipe data and time action setting value | |||
| Life | Approx. 5 years (Operating ambient temperature of 25) | |||
|
Built-in interface
RS-422 | RS-422/485 1ch Transmission speed :115,200/57,600/38,400/19,200/9,600/4,800bps Connector shape :D-sub 9 pins (Female) Application :PLC communication Terminating resistor*4 :Open/110 /330 (Switched by terminating resistor selector switch) | |||
|
RS-232 | RS-232 1ch Transmission speed :115,200/57,600/38,400/19,200/9,600/4,800bps Connector shape :D-sub 9 pins (Male) Application :PLC communication, bar code reader connection, PC communication (Project data upload/download, OS installation, transparent function) | |||
|
USB | USB (Full Speed 12Mbps) 1ch Connector shape :Mini-B Application :PC communication (Project data upload/download, OS installation, transparent function) | |||
| Memory board | For connecting memory board (GT10-50FMB), 1ch | |||
| Buzzer output (a buzzer that sounds when touch keys are pressed) | Single tone (LONG/SHORT/OFF adjustable) | |||
| Environmental protective structure*3 | Equivalent to IP67 (JEM1030) (front section) (Horizontal format) | |||
| External dimensions | W139(5.47) H112(4.4) D41(1.61) (Excluding mounting fixtures) [mm](inch) (Horizontal format) | |||
