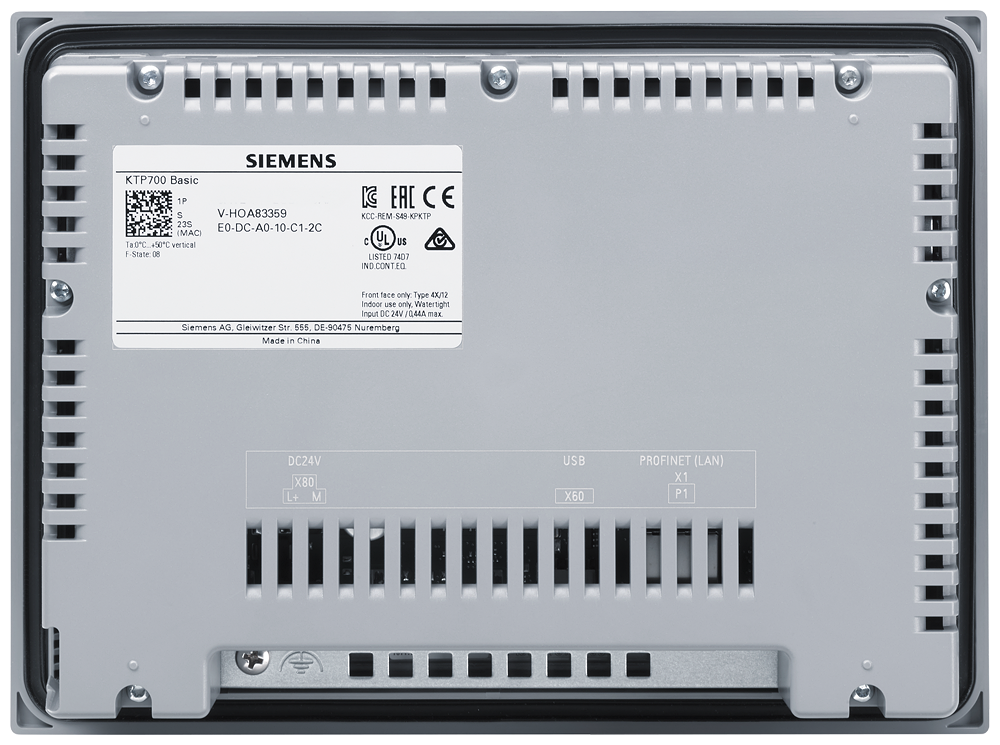

7 inch widescreen touch panel with color display and 8 function keys
Basic Panel for HMI tasks in the lower and medium performance range with SIMATIC S7-1200 controllers but also with other controllers.
The KTP700 Basic is available in two versions: KTP700 Basic with an Ethernet interface and KTP700 Basic DP for MPI/PROFIBUS DP connections.
| Technical Data | KTP700 Basic | KTP700 Basic DP |
| Hardware | ||
| Display | 7 inch TFT, 64K colors | |
| Resolution | 800 x 480 px | |
| Control elements | Touch screen / 8 Function keys | |
| User memory | 10 MB | |

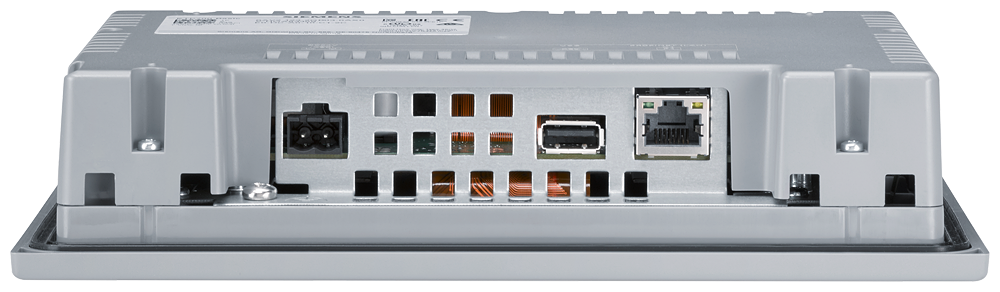

| Interfaces | 1 x RJ 45 Ethernet for PROFINET | 1 x RS 485 for PROFIBUS/MPI |
| 1 x USB host | 1 x USB host | |
| Degree of protection | IP 65, NEMA 4x (front if mounted) / IP 20 rear | |
| Installation cutout | 197 x 141 mm (W x H) | |
| Front panel | 214 x 158 mm (W x H) | |

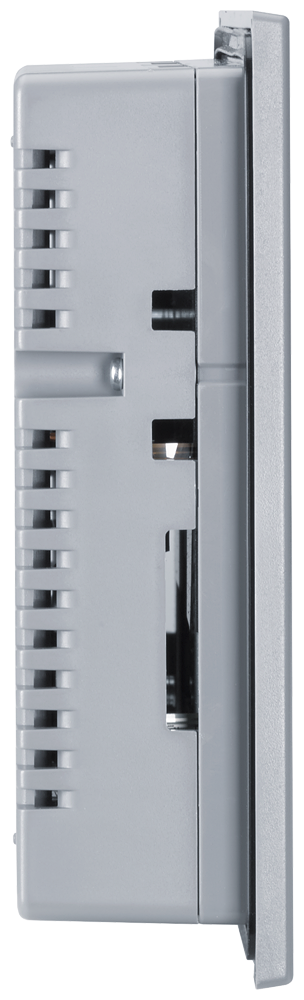

| Device depth | 46 mm | |
| Software functions | ||
| Configuration software | WinCC Basic (TIA Portal) V13 or higher | |
| Messages | 1000 | |
| Message classes | 32 | |
| Process screens | 100 | |
| Tags | 800 | |
| Vector graphics | x | |
| Bar graphics | x | |
| Curve diagrams | f(t) | |
| Recipes | 50 | |
| Archiving | x | |
| Article No.: | 6AV2123-2GB03-0AX0 | 6AV2123-2GA03-0AX0 |
