| Device type | Fibers |
| Detection principle | Proximity system |
| For fiber-optic sensor | GLL170(T), WLL180T, WLL24 Ex, KTL180 |
| Fiber length | 2,000 mm |
| Fiber material | Polymethylmethacrylat (PMMA) |
| Jacket material | Polyethylen (PE) |
| Fiber head material | Stainless steel 1) |
| Outer diameter, fiber-optic cable connection | 2.2 mm |
| Fiber-optic cable cuttable | ✔ 2) |
| Thread size | M6 |

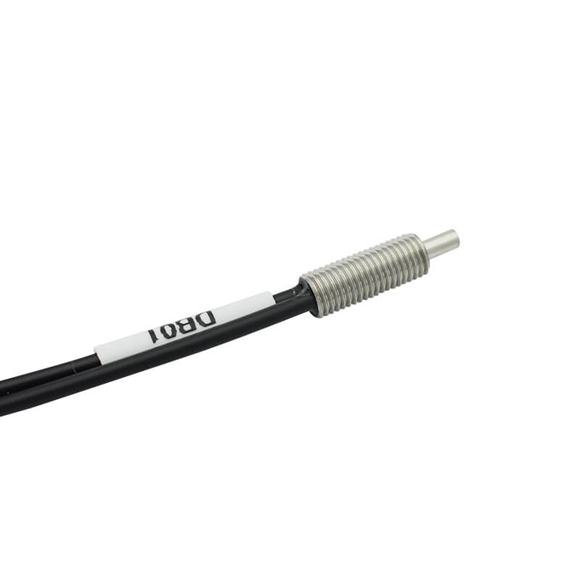

| Fiber-optic head design | Threaded sleeve |
| Fiber arrangement | Coaxial arrangement |
| Core structure | S: Ø 1 mm, R: 16 x Ø 0,25 mm 3) Coaxial arrangement |
| Bend radius, fibre-optic cable | 25 mm |
| Angle of dispersion < 60° | No |
| Compatibility with infrared light (1,450 nm) | No |
| Ambient operating temperature | –40 °C … +70 °C |
| Diameter/thread size from 2 mm taper | ≥ 2.8 mm |
| Length of taper | ≥ 5 mm |
| Highly flexible/elastic fibers (bend radius 1–4 mm) | No |
| Adapter end sleeves required | No |
| Angle of dispersion | 60° |
| Integrated lens | No |
| Minimal object diameter | 0.015 mm 4) |

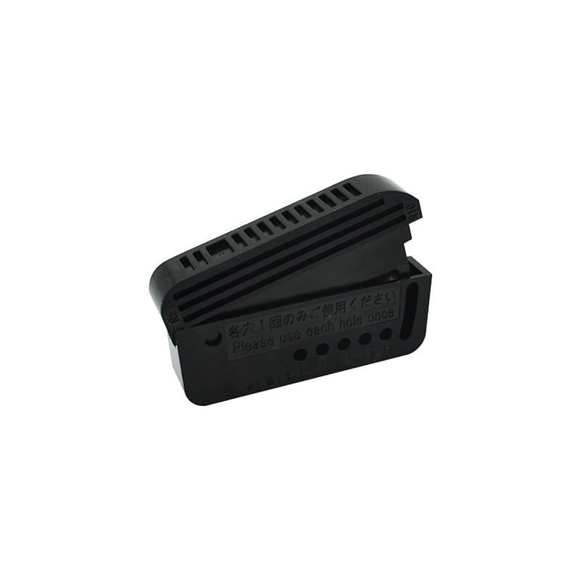

| Included with delivery | Mounting, 2 x M6 hexagon nut, 2 x washer, FC fiber cutter (5304141) |
| Compatibility tip adapters | No |
| Special features | Coaxial construction for exact switching. Standard, large sensing range |
