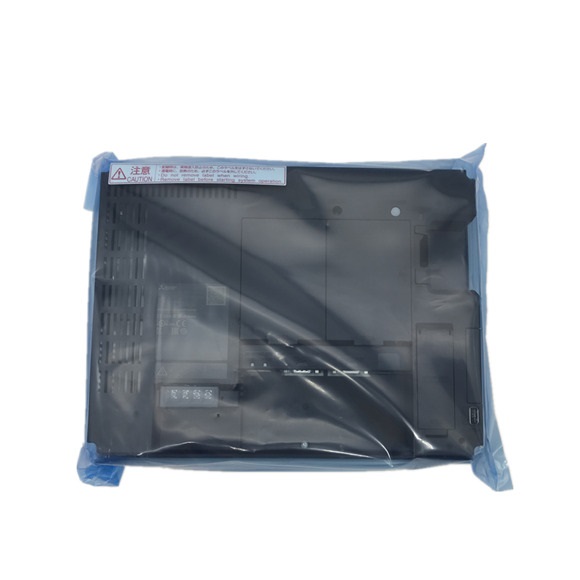

12.1″ Mitsubishi Touch screen HMIs GT2712-STBA

Series#: Mitsubishi

Product Details

  • Product Details
  • 10.4″ Mitsubishi Touch screen HMIs GT2710-STBA,Multi-touch Advanced HMI – GT27 Series
  • We are First Class mitsubishi plc dealer and mitsubishi plc distributor in China.
  • We can Supply mitsubishi electric automation parts,such as Mitsubishi PLC,Mitsubishi Servo Motor,Mitsubishi HMI,Mitsubishi VFD and So on,
  • 100% Original and new,In stock by Mitsubishi HMI
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs

Specification

Mitsubishi Touch screen HMI

GT2715-XTBA


GT2715-XTBD

GT2712-STBA


GT2712-STBD

GT2712-STWA


GT2712-STWD

GT2710-STBA


GT2710-STBD

GT2710-VTBA


GT2710-VTBD

GT2710-VTWA


GT2710-VTBD

GT2708-STBA


GT2708-STBD

GT2708-VTBA


GT2708-VTBD

GT2705-VTBD
TypeTFT     Color LCD







Screen Size15"12.1"
10.4"

8.4:
5.7"
Resolution (Dots)1024*768 XGA800*600 SVGA

640**480 VGA
800*600 SVGA640*480 VGA
Display Size (W x H) mm304.1*228.1246.0*184.5
211.1*158.4

170.9*128.2
115.2*86.4
Number of Characters

 16 dot: 64 x 48


 12 dot :85 x 64

16-dot standard font: 50 chars. x 37 lines (2-byte)



12-dot standard font: 66 chars. x 50 lines (2-byte)

16-dot 40 x 30


12-dot  53x 40

16-dot standard font: 50 chars. x 37 lines (2-byte)


12-dot standard font: 66 chars. X 50 lines(2-byte)

16-dot 50 x 37


12-dot 66 X 50

16-dot standard font:40 chars. x 30 lines (2-byte)



12-dot standard font:53 chars. x 40 lines (2-byte)

Display Colors65536 COLORS






Intensity Adjustment32-Level adjustment





Backlight Type

LED (not replaceable






Life
Approx. 60000 hours or more (Time for display intensity reaches 50% at ambient temperature of 25°C) (*4)
Touch Panel (*3) TypeAanlog Resistive Film







Key SizeMinimum 2*2 dots (per key)(*7)





Simultaneous PressMaximum 2 points





Life1 Million times or more (operating force 0.98N or less)



Panel ColorsBlack
WhiteBlack
WhiteBlck

Human Sensor

Detection Distance (m)

1m







Detection TemperatureTemperature difference between human body and ambient air: 4 degree C or higher



Memory User Menmory

Capacity

Memory for storage(ROM): 57MB, Memory for operation (RAM) :128MB


Life(No. of Writings)100000 times







Internal Clock Accuracy±90 sec/month (ambient temperature 25°C)



Battery TypeGT11-50BAT lithium battery



LifeApprox. 5 years (ambient temperature 25°C)




Built-in Interface Rs-2321ch Transmission speed: 115200/57600/38400/19200/9600/4800bps Connector shape: D-sub 9-pin (male)
RS-422/4851ch Transmission speed: 115200/57600/38400/19200/9600/4800bps Connector shape: D-sub 9-pin (female)
Ethernet1ch Data transfer method: 10BASE-T/100BASE-TX Connector shape: RJ-45 (modular jack)
USB (Host)

2ch

f/r


1ch

rear

1ch

 front



2ch

f/r



Maximum transfer speed: High-Speed 480Mbps Connector shape: USB-A
USB(Driver)

1ch

 front


1ch

rear

1ch

front



1ch

front



Maximum transfer speed: High-Speed 480Mbps Connector shape: USB Mini-B
SD Card1ch SDHC compliant (maximum 32GB)



Extension Interface (*6)For communication unit/option unit mounting


Auxiliary Extension I/FFor option unit mounting


Side InterfaceFor communication unit mounting


Buzzer OutputSingle tone (tone, tone length adjustable)

Power LEDEmission color: 2 colors (blue, orange)

Protective ConstructionFront: IP67F (*5,*8) In control panel: IP2X

External Dimensions(W*H*D)mm

397x300

x60

316 x 246 x 52
303 x 218 x 52

241 x 194 x 52

Panel Cutout(W* H)383.5 x 282.5302 x 228
289 x 200

227 x 176

Weight(KG)

Excludes Mounting Brackets)

4.52.4
2.1

1.5
1

Application Software

Package 1

1.112S or later1.100E or later





1.130L or later
